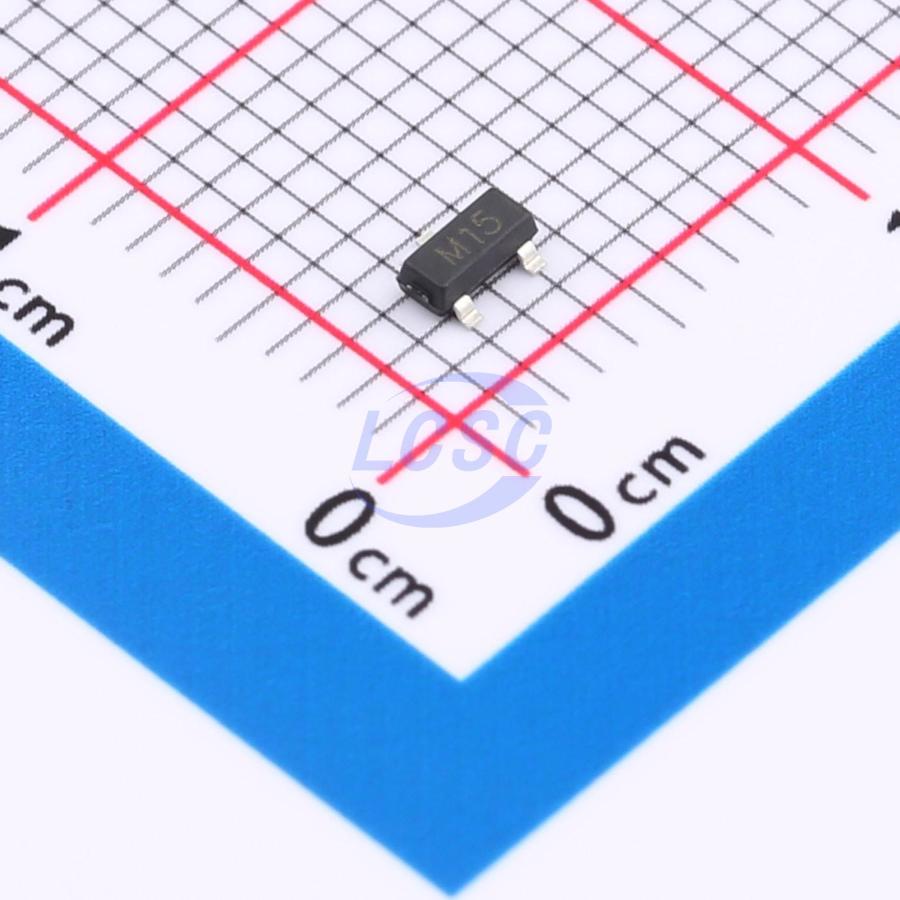

HAQ15-02HTG
38VC Clamp ESD DIODE SOT-23
ESD DIODE 15VWM 38VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HAQ15-02HTG
- Store part #
- C22440187
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22440187
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.29 | ₹121.45 |
| 50+ | ₹19.08 | ₹954.00 |
| 150+ | ₹16.84 | ₹2,526.00 |
| 500+ | ₹14.05 | ₹7,025.00 |
| 3,000+ | ₹12.81 | ₹38,430.00 |
| 6,000+ | ₹12.07 | ₹72,420.00 |
5 × ₹24.29
₹121.45
excl. GST
₹143.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HAQ15-02HTG
₹121.45 for 5 + GST
Specifications
- Clamping Voltage
- 38V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.7V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
This device protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect two unidirectional lines in applications where an array is not suitable.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 15V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
