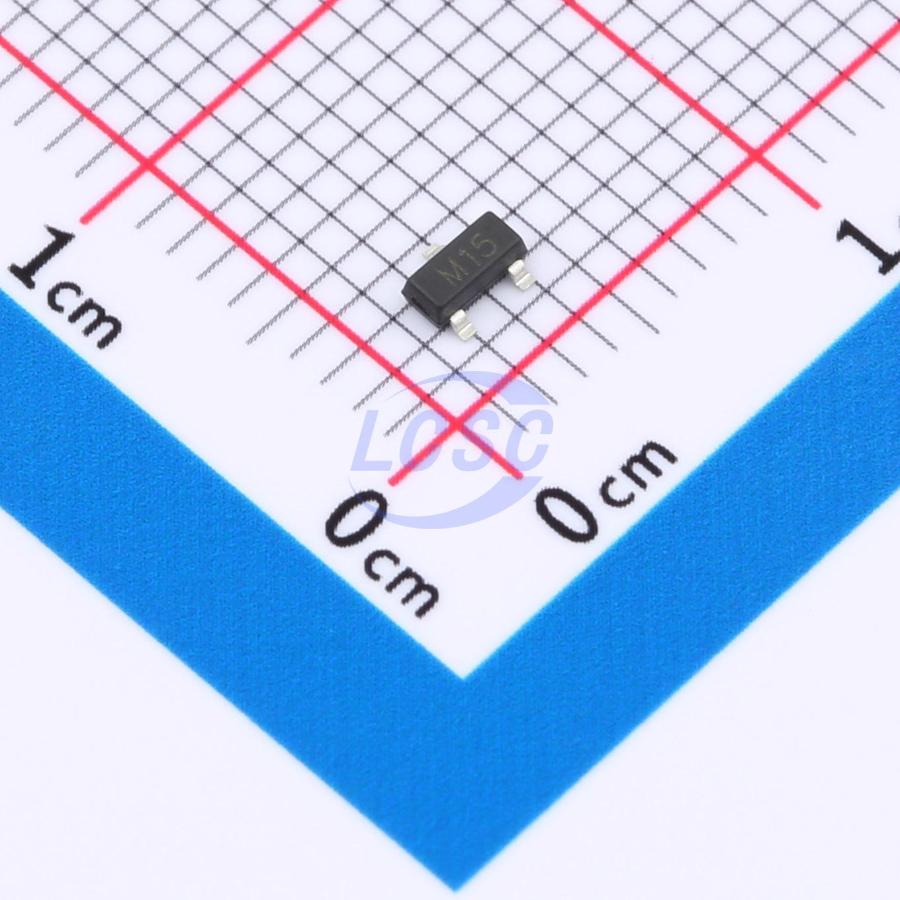

HSTS232150U451
38VC Clamp 10A Ipp ESD DIODE SOT-23
ESD DIODE 15VWM 38VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTS232150U451
- Store part #
- C22439858
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C22439858
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.82 | ₹74.10 |
| 50+ | ₹11.84 | ₹592.00 |
| 150+ | ₹10.36 | ₹1,554.00 |
| 500+ | ₹9.25 | ₹4,625.00 |
| 3,000+ | ₹8.36 | ₹25,080.00 |
| 6,000+ | ₹7.91 | ₹47,460.00 |
5 × ₹14.82
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSTS232150U451
₹74.10 for 5 + GST
Specifications
- Clamping Voltage
- 38V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 10A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.7V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
This device protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect two unidirectional lines in applications where an array is not suitable. Available in SOT-23 package.
Applications
- High-speed data line protection
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±30kV (contact discharge), ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 15V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
