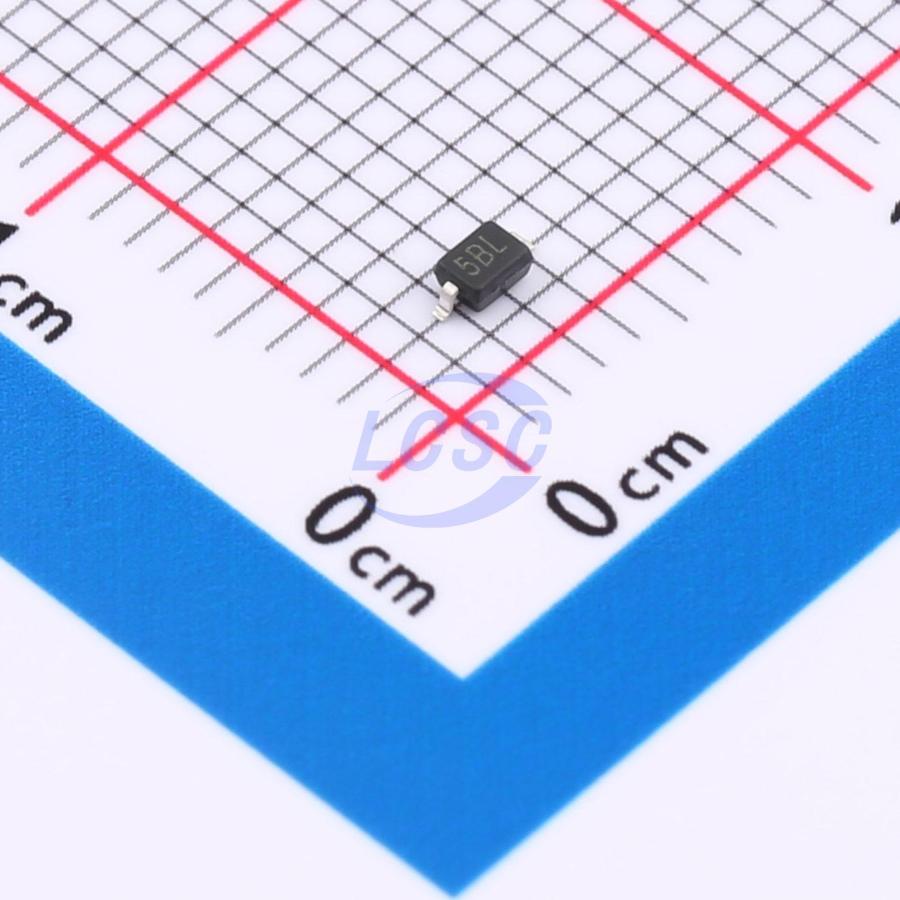

HAR0511D3
13VC 25VC Clamp 4A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 13VC 25VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HAR0511D3
- Store part #
- C22439745
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C22439745
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.63 | ₹66.30 |
| 100+ | ₹5.25 | ₹525.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 3,000+ | ₹4.04 | ₹12,120.00 |
| 6,000+ | ₹3.61 | ₹21,660.00 |
| 9,000+ | ₹3.41 | ₹30,690.00 |
10 × ₹6.63
₹66.30
excl. GST
₹78.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HAR0511D3
₹66.30 for 10 + GST
Specifications
- Clamping Voltage
- 13V;25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
The HAR0511D3 protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±8kV (contact discharge) ±15kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 100W (8/20us)
- Operating voltage: 5V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSEH0501D3#C22439727HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 70 | ₹4.31 · 70 in stock | View |
 | HUCD32C05L01-AT#C22439911HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 2,650 | ₹10.03 · 2,650 in stock | View |
