HSEH0501D3

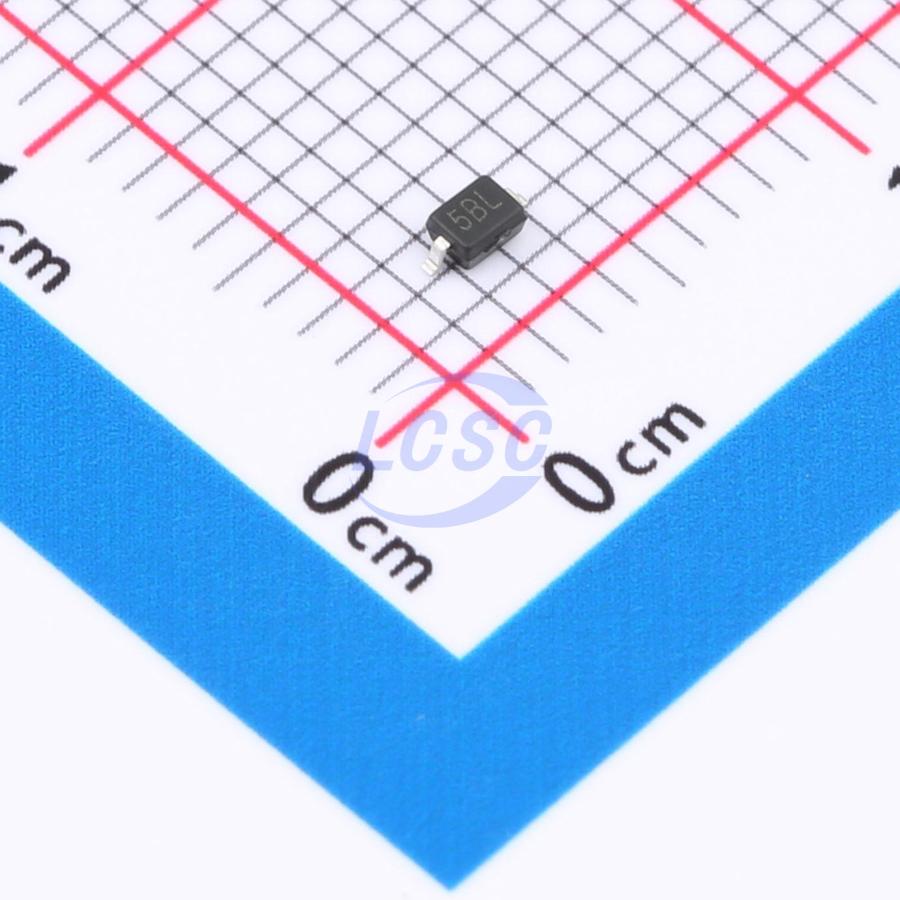

13VC 25VC Clamp 4A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 13VC 25VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSEH0501D3
- Store part #
- C22439727
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C22439727
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.31 | ₹43.10 |
| 100+ | ₹4.22 | ₹422.00 |
| 300+ | ₹4.17 | ₹1,251.00 |
| 1,000+ | ₹4.10 | ₹4,100.00 |
10 × ₹4.31
₹43.10
excl. GST
₹50.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSEH0501D3
₹43.10 for 10 + GST
Specifications
- Clamping Voltage
- 13V;25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
HSEH0501D3 is designed to protect sensitive semiconductor components from damage or malfunction caused by transient events such as ESD and other voltage spikes. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. The device offers designers the flexibility to protect a single bidirectional line in applications where an array is not suitable. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±8kV (contact discharge) and ±15kV (air discharge)
- Compliant with IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 100W (8/20μs)
- Working voltage: 5V
- Protects one power or data line
- Low clamping voltage
- Low leakage current
Alternatives
Similar parts — check the datasheet before substituting.
