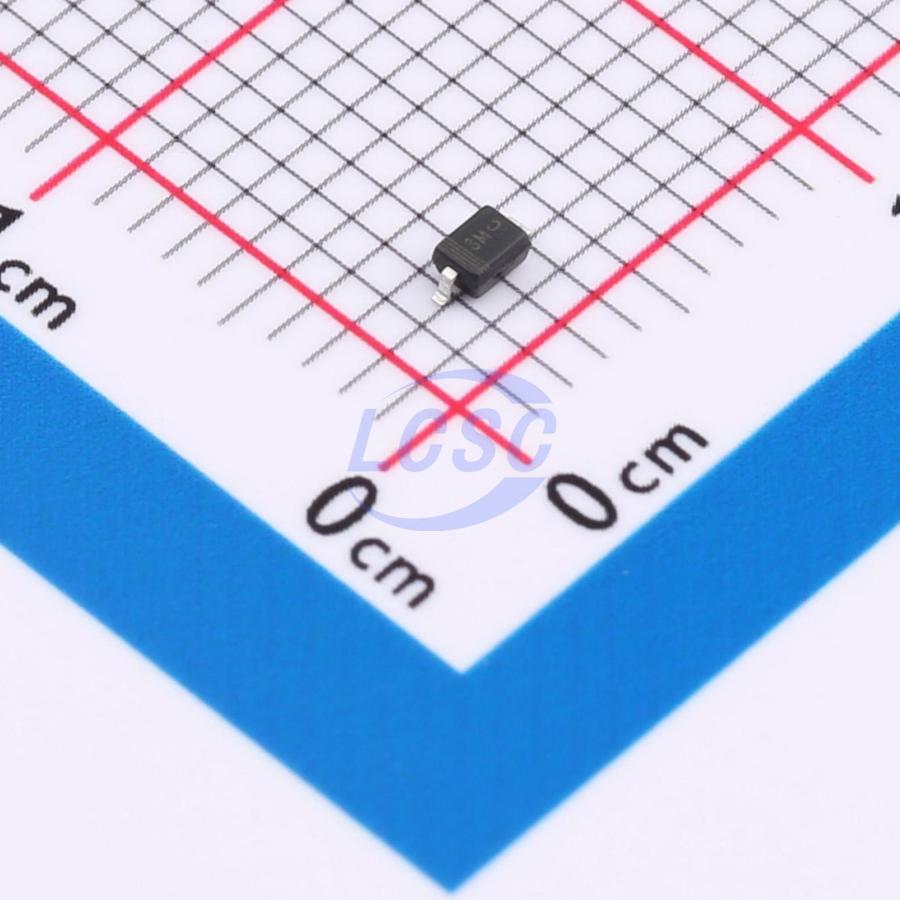

HAZ2225-01L.R7G
9VC Clamp 11A@8/20us Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 9VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HAZ2225-01L.R7G
- Store part #
- C22440062
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22440062
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.19 | ₹51.90 |
| 100+ | ₹4.10 | ₹410.00 |
| 300+ | ₹3.56 | ₹1,068.00 |
| 3,000+ | ₹3.15 | ₹9,450.00 |
| 6,000+ | ₹2.83 | ₹16,980.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
10 × ₹5.19
₹51.90
excl. GST
₹61.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HAZ2225-01L.R7G
₹51.90 for 10 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 5.6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
HAZ2225-01L.R7G protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not practical. Available in SOD-323 package.
Applications
- Protects a single bidirectional line where array configurations are impractical
Key features
- Compact package outline
- Low package height
- Peak power up to 100W under 8×20 μs pulse
- Low leakage current
- Typical response time <1 ns
- Human Body Model Level 3 ESD rating (>16kV)
- IEC61000-4-2 Level 4 ESD protection compliant
- IEC61000-4-4 Level 4 EFT protection compliant
Alternatives
Similar parts — check the datasheet before substituting.
