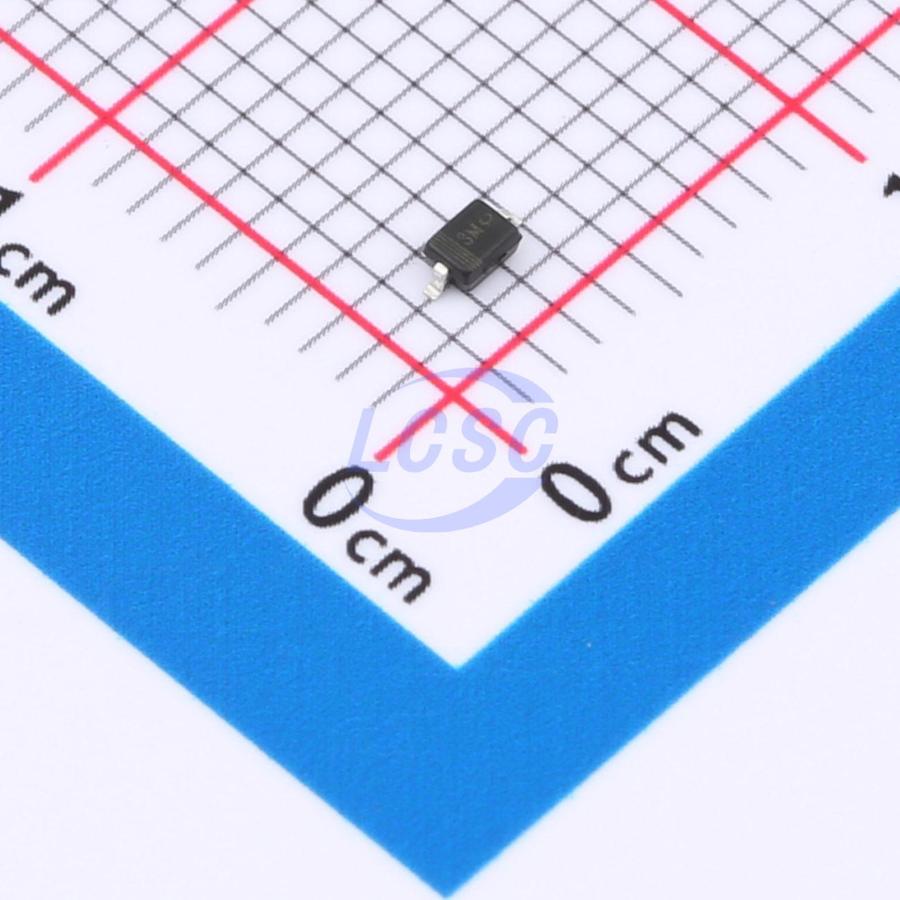

HD5V0L1B2WS-7
9VC Clamp 11A@8/20us Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 9VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HD5V0L1B2WS-7
- Store part #
- C22440003
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
240 in stock
#C22440003
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.58 | ₹91.60 |
| 200+ | ₹3.56 | ₹712.00 |
| 600+ | ₹3.00 | ₹1,800.00 |
| 3,000+ | ₹2.67 | ₹8,010.00 |
| 9,000+ | ₹2.37 | ₹21,330.00 |
| 21,000+ | ₹2.22 | ₹46,620.00 |
20 × ₹4.58
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HD5V0L1B2WS-7
₹91.60 for 20 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 5.6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.016 g
Overview
HD5V0L1B2WS-7 is designed to protect sensitive semiconductor components from damage or failure caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide industry-leading protection for designs exposed to ESD environments. The device offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Compact package size
- Low package height
- Peak power up to 100W under 8×20μs pulse conditions
- Low leakage current
- Typical response time less than 1ns
- ESD protection compliant with Human Body Model Class 3 (greater than 16kV)
- ESD protection compliant with IEC61000-4-2 Level 4
- EFT protection compliant with IEC61000-4-4 Level 4
