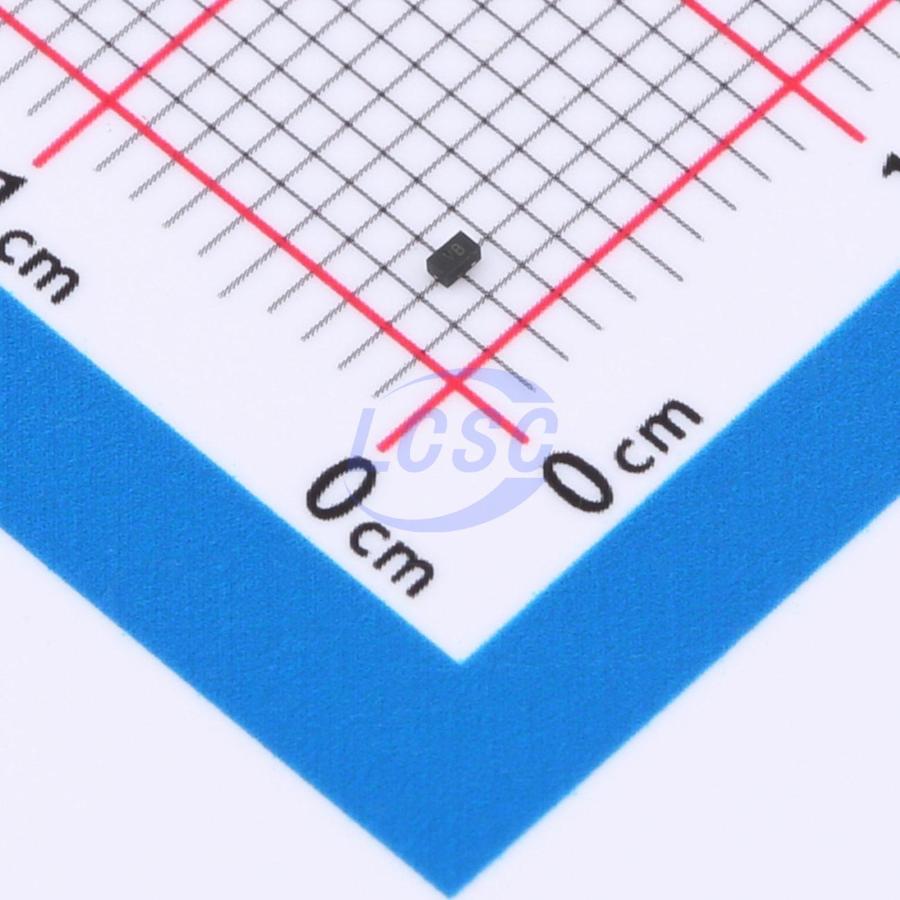

HCESD1006LC5VBL-M
2.5VC Clamp 2.5A Ipp ESD DIODE DFN1006-2L
ESD DIODE 5VWM 2.5VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCESD1006LC5VBL-M
- Store part #
- C22440191
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C22440191
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 1,000+ | ₹4.48 | ₹4,480.00 |
| 5,000+ | ₹4.06 | ₹20,300.00 |
| 10,000+ | ₹3.85 | ₹38,500.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HCESD1006LC5VBL-M
₹71.40 for 10 + GST
Specifications
- Clamping Voltage
- 2.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.5A
- Peak Pulse Power Dissipation (Ppp)
- 10W@8/20us
- Voltage - Breakdown
- 8.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.007 g
Overview
HCESD1006LC5VBL-M protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for designs exposed to ESD. It enables designers to flexibly protect a single bidirectional line in applications where an array is not suitable.
Key features
- Ultra-low capacitance 2.5 pF
- Low clamping voltage
- Small outline: 0.039 in × 0.024 in (1.00 mm × 0.60 mm)
- Low profile: 0.020 in (0.5 mm)
- Standoff voltage: 5 V
- Low leakage
- Response time typically < 1.0 ns
- IEC61000-4-2 Level 4 ESD protection
- Lead-free device
