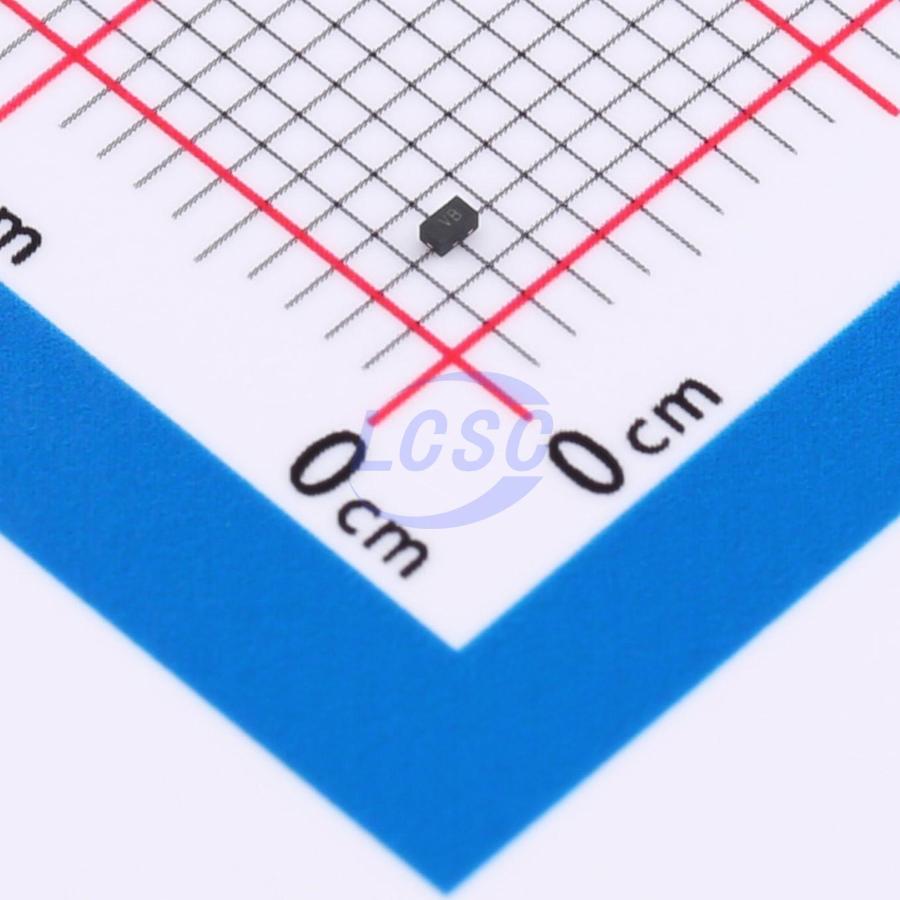

HDESD5V0U1BL-7B
2.5VC Clamp 2.5A Ipp ESD DIODE DFN1006-2L
ESD DIODE 5VWM 2.5VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HDESD5V0U1BL-7B
- Store part #
- C22439956
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C22439956
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.50 | ₹125.00 |
| 500+ | ₹1.94 | ₹970.00 |
| 1,500+ | ₹1.64 | ₹2,460.00 |
| 10,000+ | ₹1.46 | ₹14,600.00 |
| 20,000+ | ₹1.30 | ₹26,000.00 |
| 50,000+ | ₹1.22 | ₹61,000.00 |
50 × ₹2.50
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HDESD5V0U1BL-7B
₹125.00 for 50 + GST
Specifications
- Clamping Voltage
- 2.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.5A
- Peak Pulse Power Dissipation (Ppp)
- 10W@8/20us
- Voltage - Breakdown
- 8.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.007 g
Overview
HDESD5V0U1BL - 7B protects sensitive semiconductor components from damage or malfunction caused by ESD and other transient voltage events. Excellent clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for ESD-sensitive designs. It provides designers with the flexibility to protect a single bidirectional line in applications where an array is not suitable.
Key features
- Ultra-low capacitance: 2.5 pF
- Low clamping voltage
- Small footprint: 0.039" × 0.024" (1.00 mm × 0.60 mm)
- Low profile: 0.020" (0.5 mm)
- Standoff voltage: 5 V
- Low leakage
- Response time typically < 1.0 ns
- IEC61000-4-2 Level 4 ESD protection
- Lead-free device
- DFN1006-2L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HCESD1006LC5VBL-M#C22440191HXY MOSFET · DFN1006-2L | HXY MOSFET | DFN1006-2L | 80 | ₹7.14 · 80 in stock | View |
