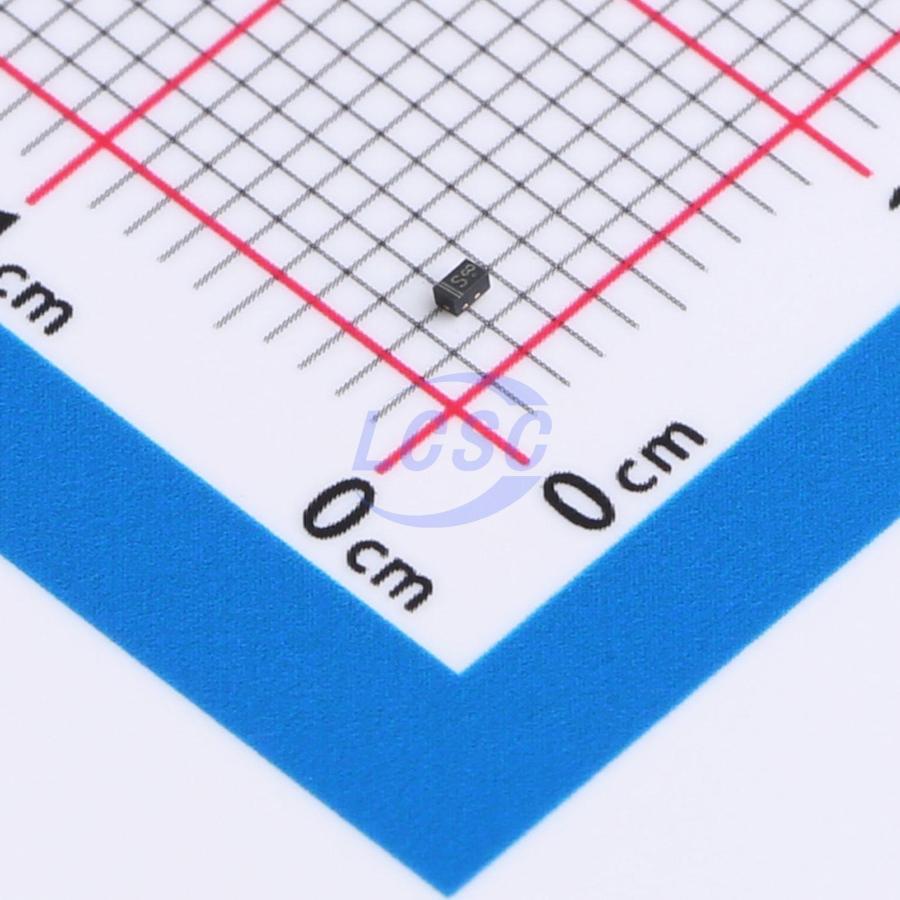

HCESD1006UC3V3B
25VC Clamp 4A Ipp ESD DIODE DFN1006-2L
ESD DIODE 3.3VWM 25VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCESD1006UC3V3B
- Store part #
- C22440145
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C22440145
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.98 | ₹79.80 |
| 100+ | ₹6.31 | ₹631.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 1,000+ | ₹4.84 | ₹4,840.00 |
| 5,000+ | ₹4.34 | ₹21,700.00 |
| 10,000+ | ₹4.09 | ₹40,900.00 |
10 × ₹7.98
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HCESD1006UC3V3B
₹79.80 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 4.2V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.005 g
Overview
HCESD1006UC3V3B protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for ESD-exposed designs. It enables designers to flexibly protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L package.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD): ±8kV (contact discharge), ±15kV (air discharge)
- IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 100W (8/20μs)
- Operating voltage: 3.3V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Protects one data/control line
- Low clamping voltage
- Low leakage current
