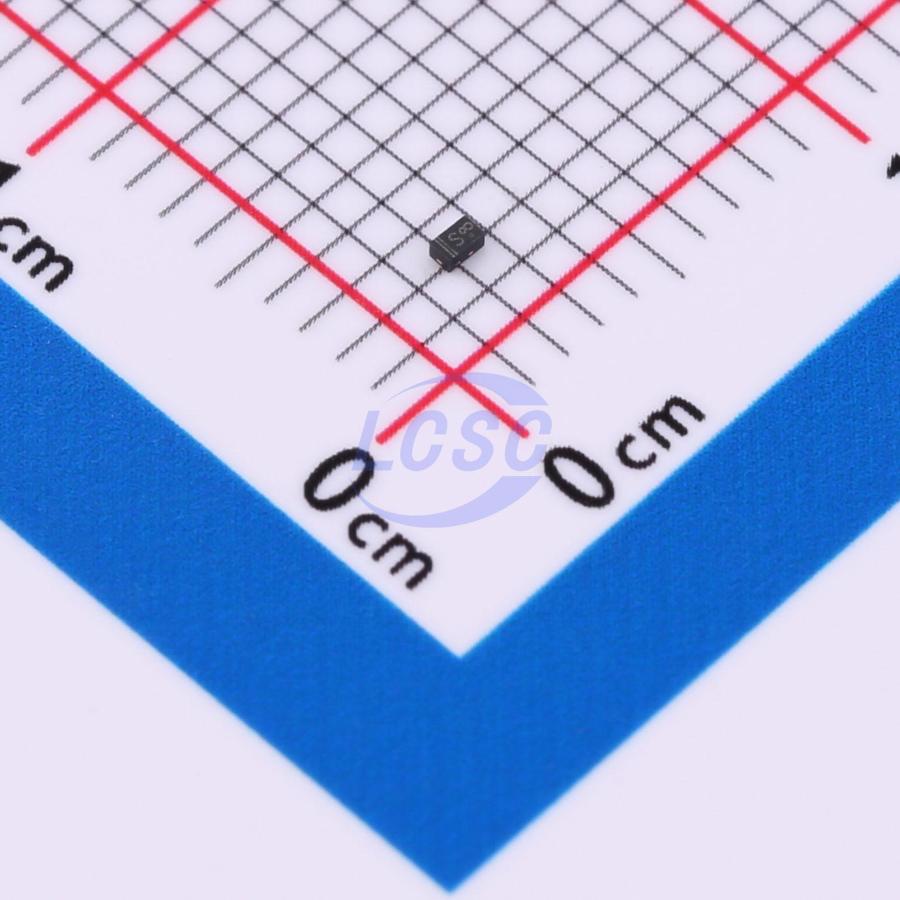

HVBUS03N1-DD1HG3-08
25VC Clamp 4A Ipp ESD DIODE DFN1006-2L
ESD DIODE 3.3VWM 25VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HVBUS03N1-DD1HG3-08
- Store part #
- C22439879
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22439879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.80 | ₹59.00 |
| 50+ | ₹9.33 | ₹466.50 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.17 | ₹3,585.00 |
| 2,500+ | ₹6.43 | ₹16,075.00 |
| 5,000+ | ₹6.06 | ₹30,300.00 |
5 × ₹11.80
₹59.00
excl. GST
₹69.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HVBUS03N1-DD1HG3-08
₹59.00 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 4.2V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.005 g
Overview
HVBUS03N1-DD1HG3-08 protects sensitive semiconductor components from damage or failure caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for ESD-exposed designs. It provides designers with the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L package.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
- IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 100W (8/20μs)
- Operating voltage: 3.3V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Protects one data/control line
- Low clamping voltage
- Low leakage current
