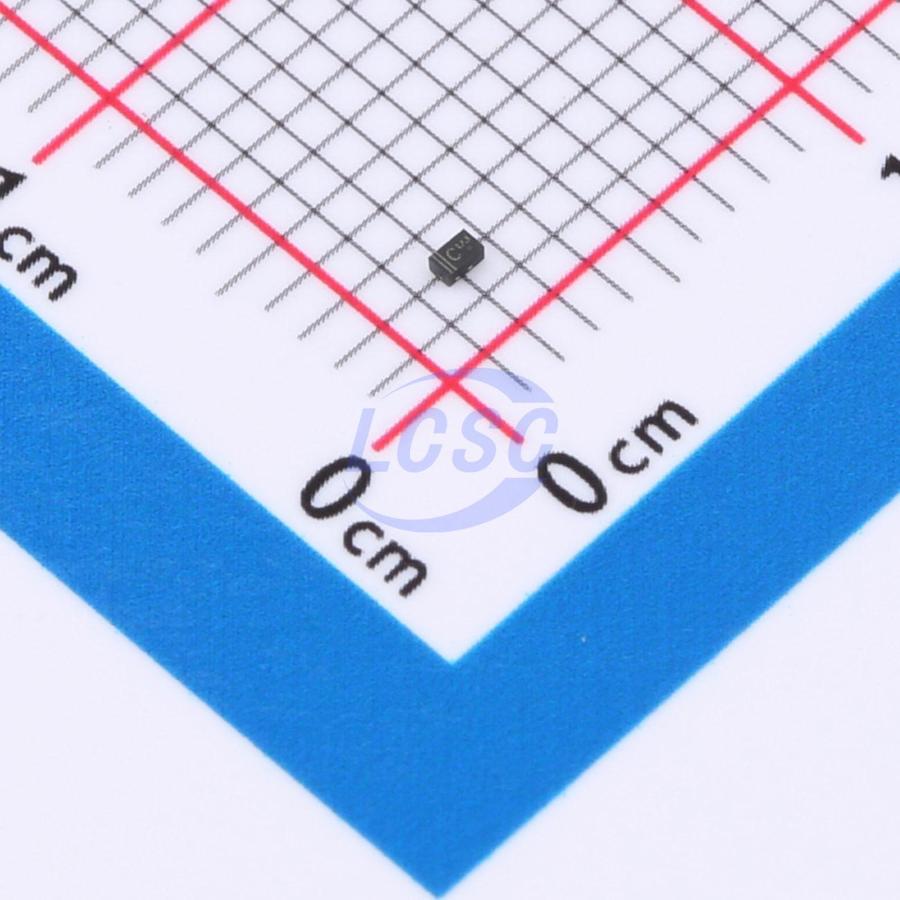

HCPDWL5V0-HF
15VC Clamp 45A Ipp ESD DIODE DFN1006-2L
ESD DIODE 5VWM 15VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCPDWL5V0-HF
- Store part #
- C22440405
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C22440405
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.14 | ₹90.70 |
| 50+ | ₹14.34 | ₹717.00 |
| 150+ | ₹12.45 | ₹1,867.50 |
| 500+ | ₹11.02 | ₹5,510.00 |
| 2,500+ | ₹9.88 | ₹24,700.00 |
| 5,000+ | ₹9.31 | ₹46,550.00 |
5 × ₹18.14
₹90.70
excl. GST
₹107.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HCPDWL5V0-HF
₹90.70 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 45A
- Peak Pulse Power Dissipation (Ppp)
- 675W@8/20us
- Voltage - Breakdown
- 9V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
HCPDWL5V0 - HF protects sensitive semiconductor components from damage or failure caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L package.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
- IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 675W (8/20μs)
- Operating voltage: 5V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Single I/O line protection
- Low clamping voltage
- Low leakage current
