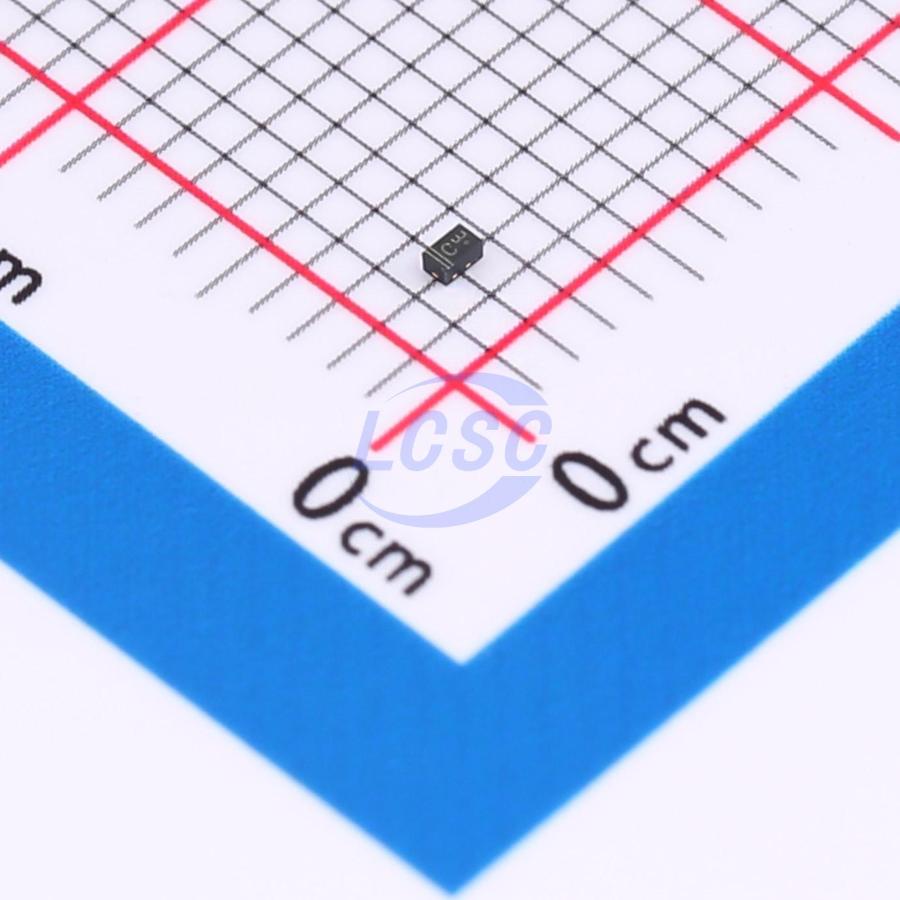

HESDM3051N2T5G
15VC Clamp 45A Ipp ESD DIODE DFN1006-2
ESD DIODE 5VWM 15VC DFN1006-2
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESDM3051N2T5G
- Store part #
- C22440399
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C22440399
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 1,000+ | ₹4.83 | ₹4,830.00 |
| 5,000+ | ₹4.33 | ₹21,650.00 |
| 10,000+ | ₹4.07 | ₹40,700.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HESDM3051N2T5G
₹79.50 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 45A
- Peak Pulse Power Dissipation (Ppp)
- 675W@8/20us
- Voltage - Breakdown
- 9V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.007 g
Overview
The HESDM3051N2T5G protects sensitive semiconductor components from damage or failure caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for ESD-exposed designs. It enables designers to flexibly protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L package.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD) ±30kV (Contact)
- IEC 61000-4-2 (ESD) ±30kV (Air)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Peak power dissipation: 675W (8/20us)
- Working voltage: 5V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Protects one I/O line
- Low clamping voltage
- Low leakage current
