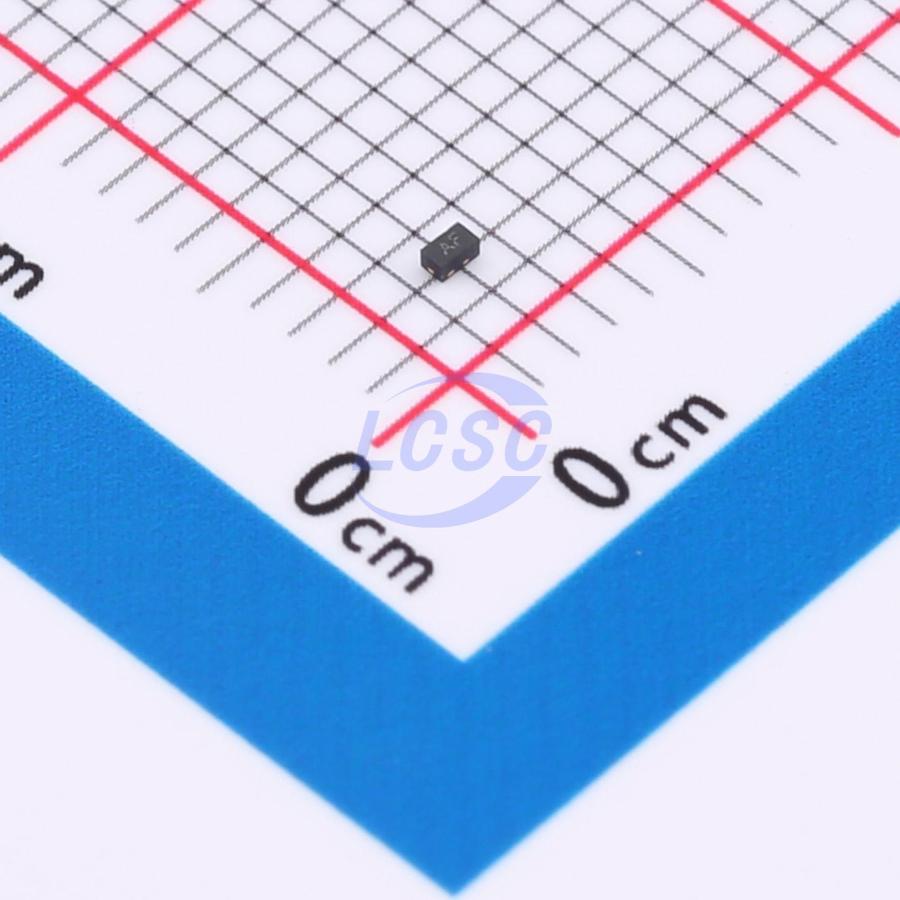

HD12V0L1B2LP-7B
26VC Clamp 5A Ipp ESD DIODE DFN1006-2L
ESD DIODE 12VWM 26VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HD12V0L1B2LP-7B
- Store part #
- C22439961
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C22439961
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.14 | ₹82.80 |
| 200+ | ₹3.23 | ₹646.00 |
| 600+ | ₹2.71 | ₹1,626.00 |
| 2,000+ | ₹2.41 | ₹4,820.00 |
| 10,000+ | ₹2.14 | ₹21,400.00 |
| 20,000+ | ₹2.00 | ₹40,000.00 |
20 × ₹4.14
₹82.80
excl. GST
₹97.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HD12V0L1B2LP-7B
₹82.80 for 20 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.006 g
Overview
HD12V0L1B2LP - 7B protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It enables designers to flexibly protect a single bidirectional line in applications where arrays are not suitable. Package: DFN1006-2L.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD): ±20kV (contact), ±25kV (air)
- IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 150W (8/20μs)
- Operating voltage: 12V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Single I/O line protection
- Low clamping voltage
- Low leakage current
