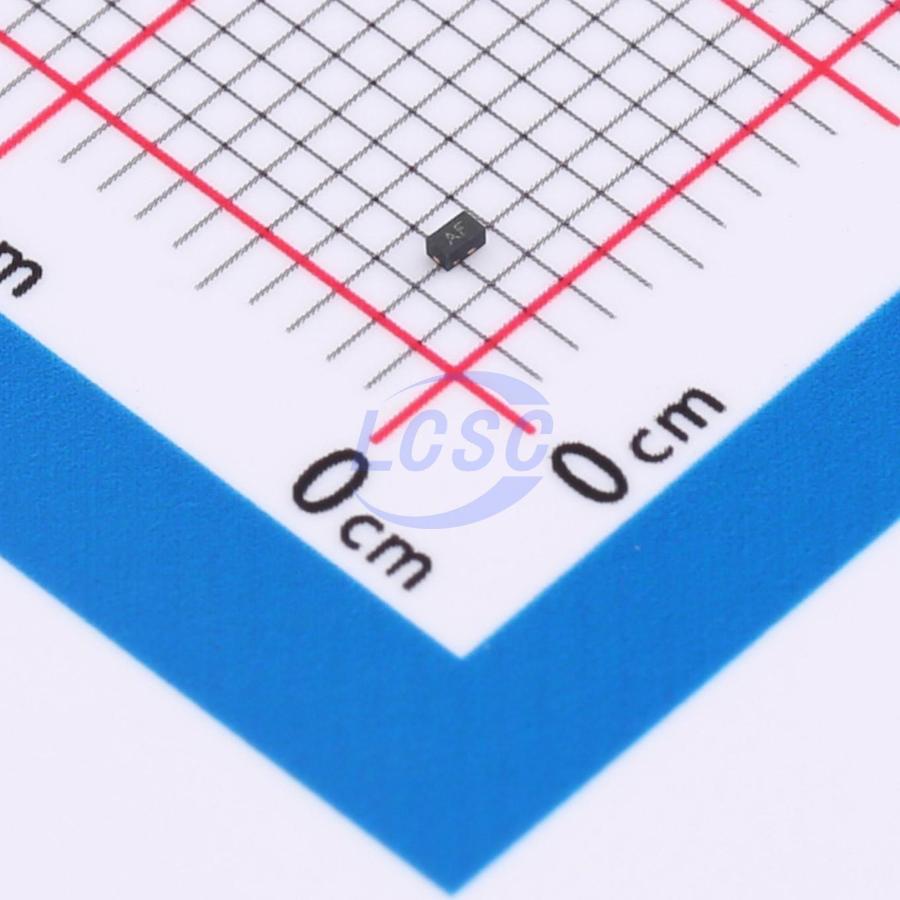

HSTN101120B111
26VC Clamp 5A Ipp ESD DIODE DFN1006-2L
ESD DIODE 12VWM 26VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTN101120B111
- Store part #
- C22439898
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
155 in stock
#C22439898
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.83 | ₹74.15 |
| 50+ | ₹11.95 | ₹597.50 |
| 150+ | ₹10.50 | ₹1,575.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 2,500+ | ₹8.56 | ₹21,400.00 |
| 5,000+ | ₹8.12 | ₹40,600.00 |
5 × ₹14.83
₹74.15
excl. GST
₹87.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HSTN101120B111
₹74.15 for 5 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.006 g
Overview
HSTN101120B111 protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for designs exposed to ESD. It provides designers with the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L package.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD): ±20kV (contact), ±25kV (air)
- IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 150W (8/20μs)
- Operating voltage: 12V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Single I/O line protection
- Low clamping voltage
- Low leakage current
