HE3342EAP8

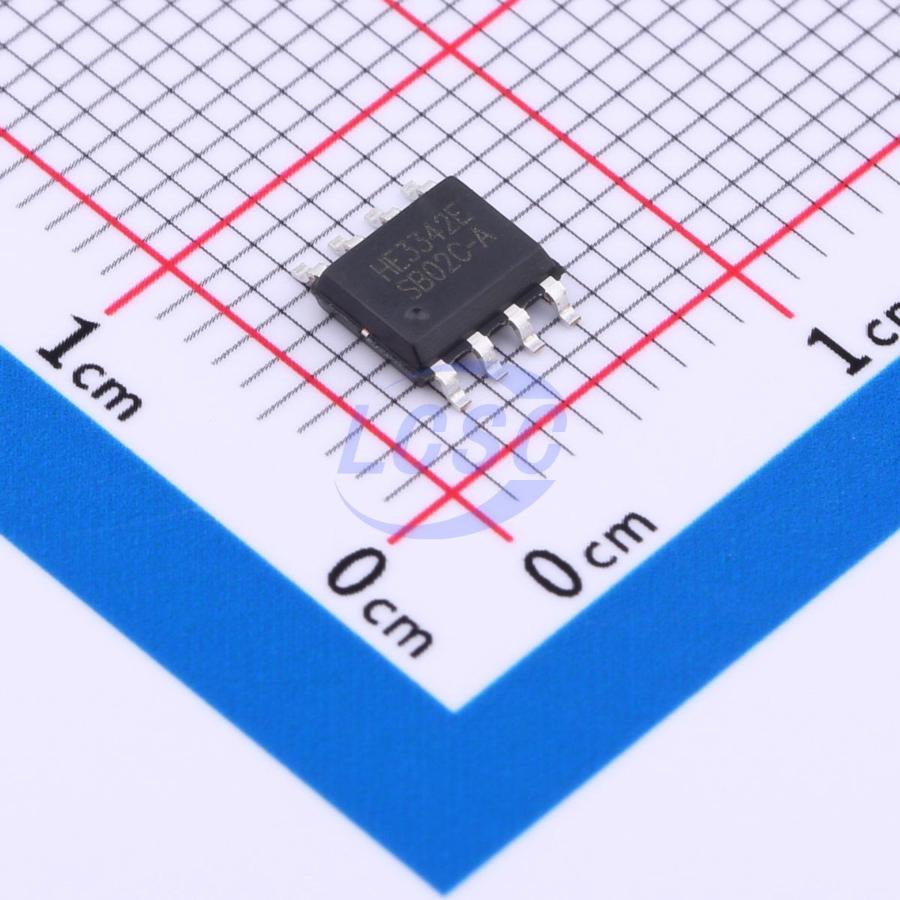

Battery Charging IC Lithium-ion/Polymer ESOP-8
Single-cell 2A switching lithium-ion battery charging chip
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE3342EAP8
- Store part #
- C5123429
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,310 in stock
#C5123429
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.47 | ₹192.35 |
| 50+ | ₹30.81 | ₹1,540.50 |
| 150+ | ₹27.54 | ₹4,131.00 |
| 500+ | ₹23.46 | ₹11,730.00 |
| 2,500+ | ₹17.95 | ₹44,875.00 |
| 5,000+ | ₹16.86 | ₹84,300.00 |
5 × ₹38.47
₹192.35
excl. GST
₹226.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HE3342EAP8
₹192.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 4.5V~6.5V
- Type of Battery
- Lithium Battery
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
A lithium-ion battery charger IC designed for 5V input supply with up to 2A charging current output. Employing a 1.5MHz fixed-frequency synchronous buck converter, it achieves over 90% charging efficiency with minimal self-heating. The IC integrates a complete charge termination circuit, automatic recharge, and a preset charge voltage of 4.2V/4.35V with ±1% accuracy. Built-in protections include reverse current blocking, output short-circuit protection, and both IC and battery temperature protection. Available in ESOP8 with exposed pad and compact DFN3×3 packages, requiring minimal external components, making it ideal for integration into various handheld applications as a high-efficiency charger solution for high-capacity batteries.
Applications
- Chargers
- Portable digital devices
Key features
- 1.5MHz fixed switching frequency
- Up to 95%+ output efficiency
- Maximum 2.5A output current
- No reverse current blocking diode required
- No external power MOSFET or freewheeling diode required
- Dual output for charging status, battery absent and fault status indication
- ±1% accuracy 4.2V/4.35V pre-charge voltage
- Charge current monitor output for battery capacity detection, 2.9V trickle charge, C/10 charge termination
- Soft-start inrush current limiting
- Battery temperature monitoring
- Output short-circuit protection
- Operating temperature range -40°C to 105°C
- ESOP-8L/DFN3*3-8L package
