HEF40106BT,653
Schmitt trigger 3V~15V 60ns@15V,50pF 4uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive

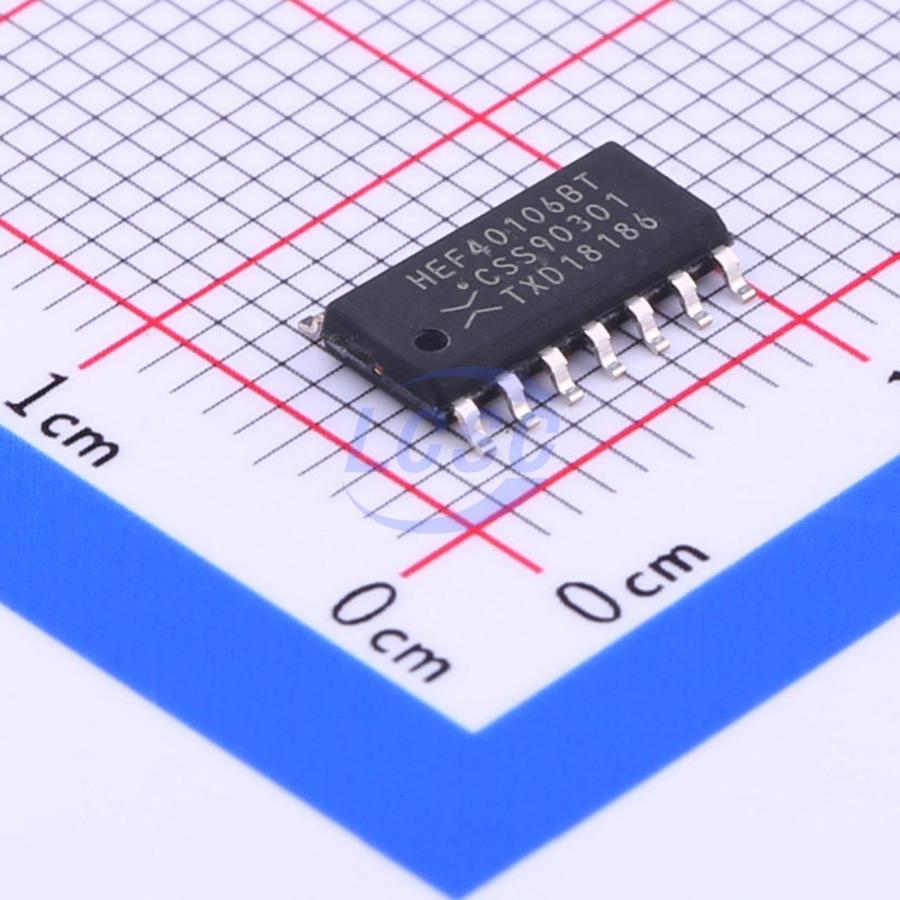

Hex inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF40106BT,653
- Store part #
- C6724
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,89,530 in stock
#C6724
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.54 | ₹117.70 |
| 50+ | ₹18.23 | ₹911.50 |
| 150+ | ₹15.97 | ₹2,395.50 |
| 500+ | ₹13.12 | ₹6,560.00 |
| 2,500+ | ₹11.34 | ₹28,350.00 |
| 5,000+ | ₹10.58 | ₹52,900.00 |
5 × ₹23.54
₹117.70
excl. GST
₹138.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF40106BT,653
₹117.70 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 4000B
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@15V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 1.5V~4V
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
The HEF40106B is a hex inverter with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Schmitt trigger input discrimination
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
- Complies with JEDEC standard JESD 13-B
- ESD protection:
- HBM JESD22-A114F exceeds 2 kV
- MM JESD22-A115-B exceeds 200 V
