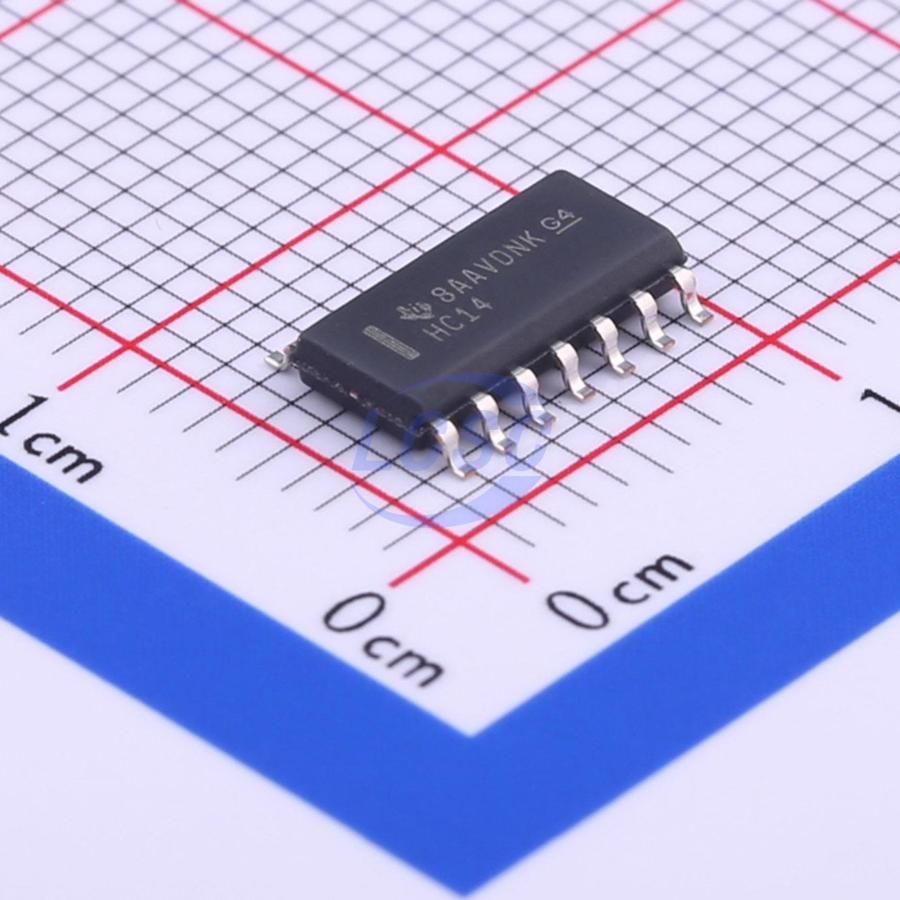

SN74HC14DR
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
PopularSOIC-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74HC14DR
- Store part #
- C6820
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,91,740 in stock
#C6820
Stock & price checked 1 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.86 | ₹99.30 |
| 50+ | ₹15.25 | ₹762.50 |
| 150+ | ₹13.01 | ₹1,951.50 |
| 500+ | ₹10.99 | ₹5,495.00 |
| 2,500+ | ₹10.44 | ₹26,100.00 |
| 5,000+ | ₹10.11 | ₹50,550.00 |
5 × ₹19.86
₹99.30
excl. GST
₹117.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC14DR
₹99.30 for 5 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.332 g
Overview
WIDE Operating Voltage Range of 2 V to 6 V - Outputs Can Drive Up to 10 LSTTL Loads - Low Power Consumption, 20 - μA Max ICC - Typical Ipd = 11 ns - ±4 - mA Output Drive at 5 V - Low Input Current of 1 μA Max These Schmitt - trigger devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.
Key features
- Operating voltage range: 2 V to 6 V
- Output drives up to 10 LSTTL loads
- Low power consumption, Icc max 20μA
- Typical propagation delay tpd = 11 ns
- Output drive current ±4 mA at 5 V
- Maximum input current 1μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC14DTR(XBLW)#C19708123XBLW · SOP-14 | XBLW | SOP-14 | 10 | ₹11.26 · 10 in stock | View |
 | 74HC14M/TR#C507199HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,265 | ₹20.41 · 2,265 in stock | View |
 | 74HC14DM/TR#C7432325HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,160 | ₹13.14 · 2,160 in stock | View |
 | SN74HC14DS#C51927315GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | On request | ₹8.76 · 0 in stock | View |
