SN74LVC1G14DBVR

Schmitt trigger 1.65V~5.5V 6.5ns@2.5V,50pF 10uA 1 SOT-23-5 Gates and Inverters RoHS

PopularSOT-23-5ROHS3 CompliantActive

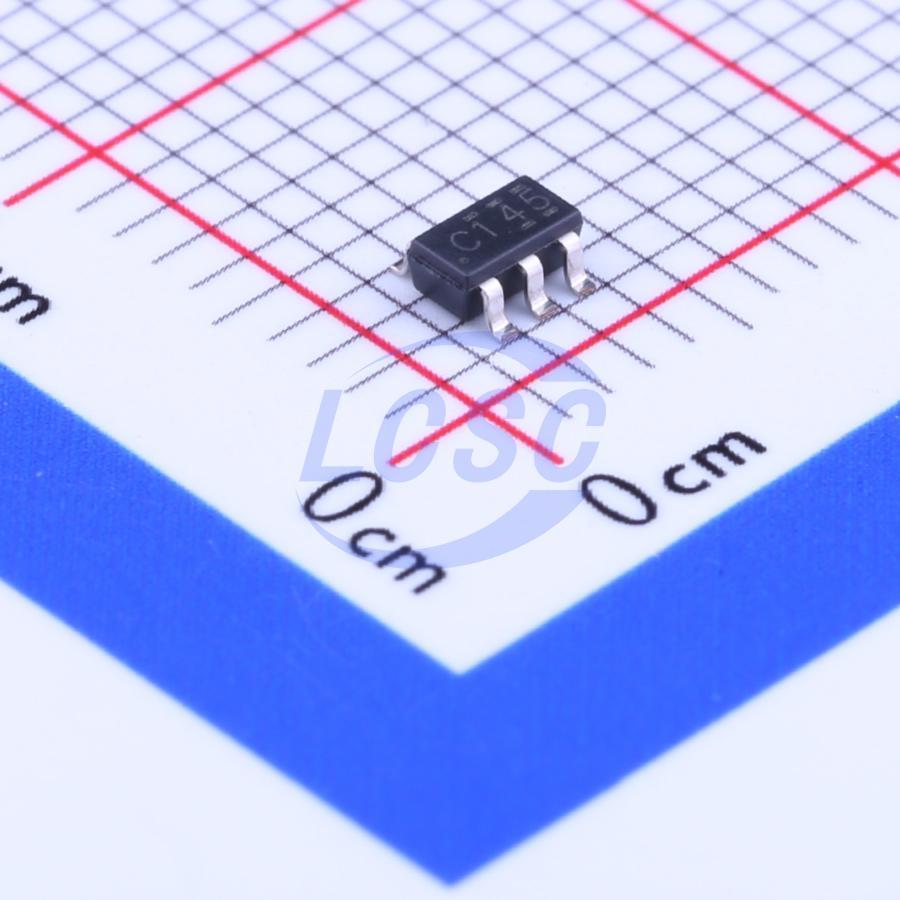

Single Schmitt-Trigger Inverter

Manufacturer: TI
Manufacturer part #: SN74LVC1G14DBVR
Store part #: C7835
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,89,110 in stock

#C7835

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹7.99	₹79.90
100+	₹6.32	₹632.00
300+	₹5.48	₹1,644.00
3,000+	₹4.78	₹14,340.00
6,000+	₹4.52	₹27,120.00
9,000+	₹4.35	₹39,150.00

Quantity (min 10, multiples of 10)

10 × ₹7.99

₹79.90

excl. GST

₹94.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G14DBVR

₹79.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 6.5ns@2.5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.16V~3.33V
Input Logic Level - Low: 390mV~1.87V
Output Logic Level - High: 2.3V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.056 g

Overview

This single Schmitt-trigger inverter is designed for 1.65-V to 5.5 V CC operation. The SN74LVC1G14 device contains one inverter and performs the Boolean function Y = A̅. The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive-going (V T+) and negative-going (V T-) signals. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using I off. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in the NanoFree Package
Supports 5-V V CC Operation
Inputs Accept Voltages to 5.5 V
Max t pd of 4.6 ns at 3.3 V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3 V
I off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
