NexperiaDatasheet (PDF)

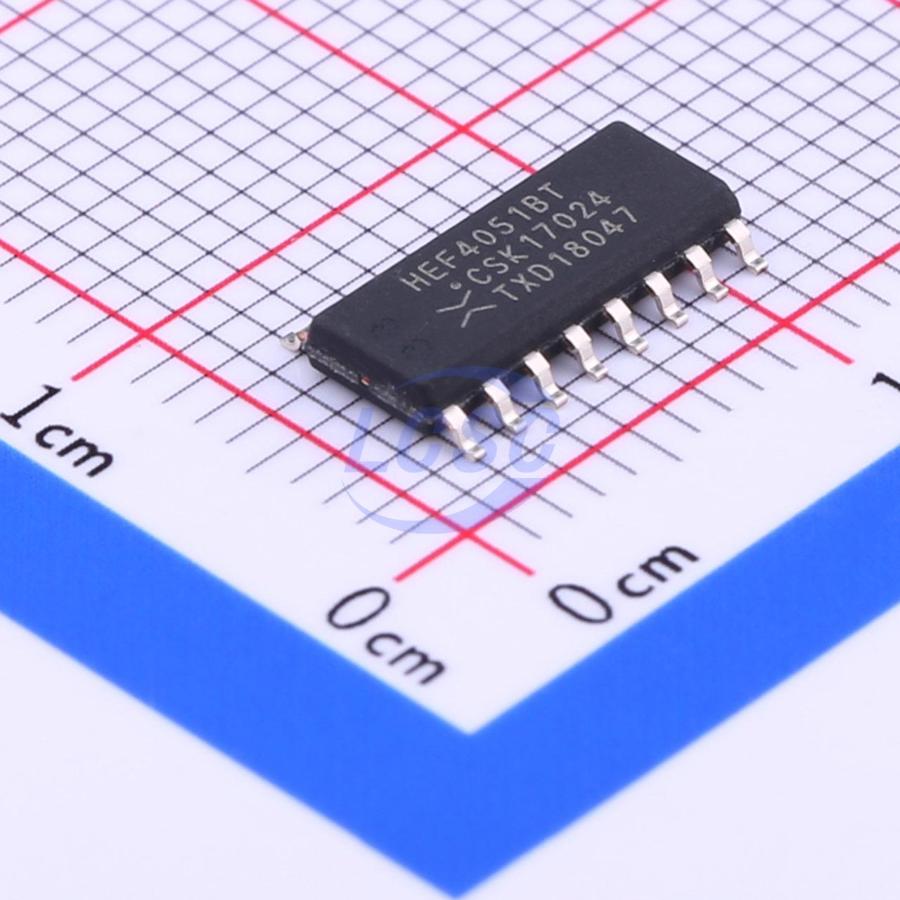

HEF4051BT,653
3V~15V 350Ω 1 SOIC-16 Analog Switches, Multiplexers, Demultiplexers RoHS
SOIC-16ROHS3 CompliantActive
8-channel analog multiplexer/demultiplexer
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4051BT,653
- Store part #
- C11351
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,400 in stock
#C11351
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.69 | ₹243.45 |
| 50+ | ₹38.61 | ₹1,930.50 |
| 150+ | ₹34.28 | ₹5,142.00 |
| 500+ | ₹28.88 | ₹14,440.00 |
| 2,500+ | ₹26.47 | ₹66,175.00 |
| 5,000+ | ₹25.03 | ₹1,25,150.00 |
5 × ₹48.69
₹243.45
excl. GST
₹287.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4051BT,653
₹243.45 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 3V~15V
- Ron
- 350Ω
- Number of Channels
- 1
- Propagation Delay
- 5ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The HEF4051B is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S1, S2 and S3), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
Key features
- Wide supply voltage range: 3.0 V to 15.0 V
- CMOS low power consumption
- High noise immunity
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Compliant with JEDEC standard JESD 13-B
- ESD protection: HBM JESD22-A114F exceeds 2000 V
- MM EIA/JESD22-A115-A exceeds 200 V
- Operating temperature range: -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4051BDTR(XBLW)#C19708118XBLW · SOP-16 | XBLW | SOP-16 | 1,050 | ₹15.53 · 1,050 in stock | View |
 | HT4051ARZ#C2834440HTCSEMI · SOIC-16 | HTCSEMI | SOIC-16 | 575 | ₹23.44 · 575 in stock | View |
 | CD4051HAEN#C52145419JSCJ · SOP-16 | JSCJ | SOP-16 | 2,235 | ₹30.44 · 2,235 in stock | View |
 | CD4051BM-TD#C42421845TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 680 | ₹14.54 · 680 in stock | View |
 | CD4051-SOP-16#C53199157DDF · SOP-16 | DDF | SOP-16 | 330 | ₹11.72 · 330 in stock | View |
