NexperiaDatasheet (PDF)

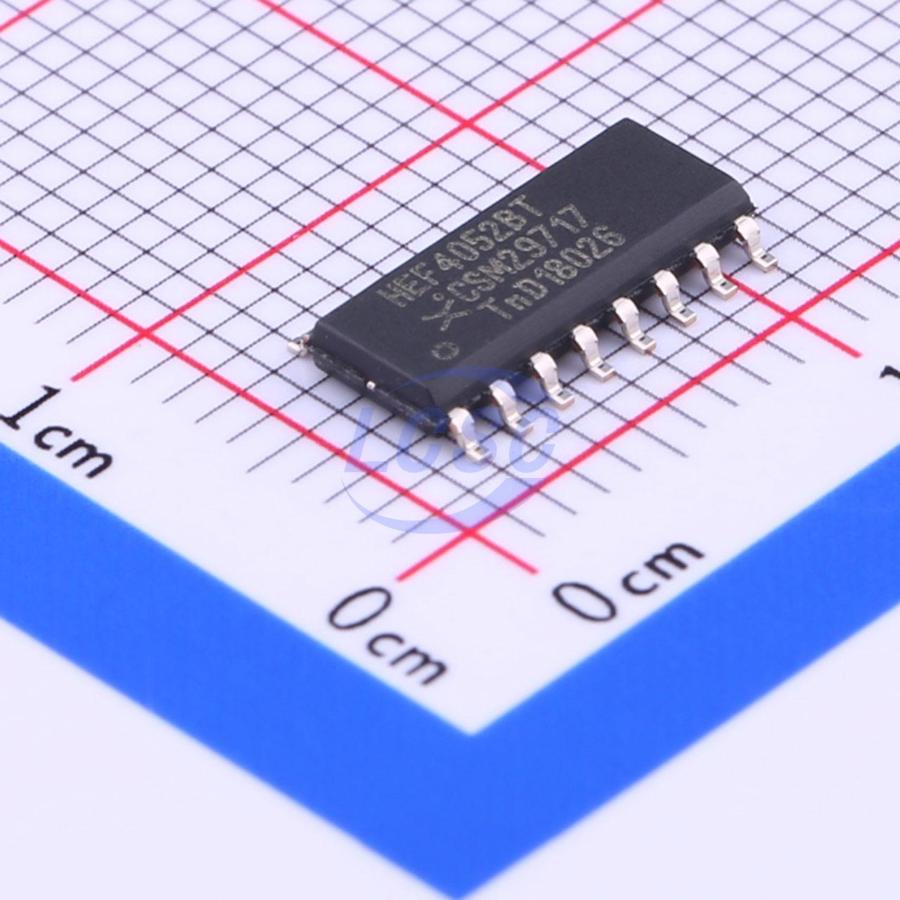

HEF4052BT,653
3V~15V 350Ω 2 SOIC-16 Analog Switches, Multiplexers, Demultiplexers RoHS
SOIC-16ROHS3 CompliantActive
Dual 4-channel analog multiplexer/demultiplexer
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4052BT,653
- Store part #
- C11352
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,992 in stock
#C11352
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.43 | ₹57.43 |
| 10+ | ₹44.81 | ₹448.10 |
| 30+ | ₹39.37 | ₹1,181.10 |
| 100+ | ₹32.64 | ₹3,264.00 |
| 500+ | ₹29.60 | ₹14,800.00 |
| 1,000+ | ₹27.64 | ₹27,640.00 |
1 × ₹57.43
₹57.43
excl. GST
₹67.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4052BT,653
₹57.43 for 1 + GST
Specifications
- Features
- Fault protection
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 3V~15V
- Ron
- 350Ω
- Number of Channels
- 2
- Propagation Delay
- 10ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.275 g
Overview
The HEF4052B is a dual single-pole quad-throw analog switch (2x SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S1 and S2) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4052BDTR(XBLW)#C19708119XBLW · SOP-16 | XBLW | SOP-16 | 1,370 | ₹15.35 · 1,370 in stock | View |
 | CD4052HSA16.TR#C51940048Wuxi I-core Elec · SOP-16 | Wuxi I-core Elec | SOP-16 | 70 | ₹29.34 · 70 in stock | View |
 | CD4052HAEN#C52145431JSCJ · SOP-16 | JSCJ | SOP-16 | 3,290 | ₹19.49 · 3,290 in stock | View |
 | CD4052BM/TR#C253890HGSEMI · SOP-16 | HGSEMI | SOP-16 | 25,165 | ₹16.09 · 25,165 in stock | View |
 | CD4052AM/TR#C46635762HGSEMI · SOP-16 | HGSEMI | SOP-16 | 2,475 | ₹14.65 · 2,475 in stock | View |
