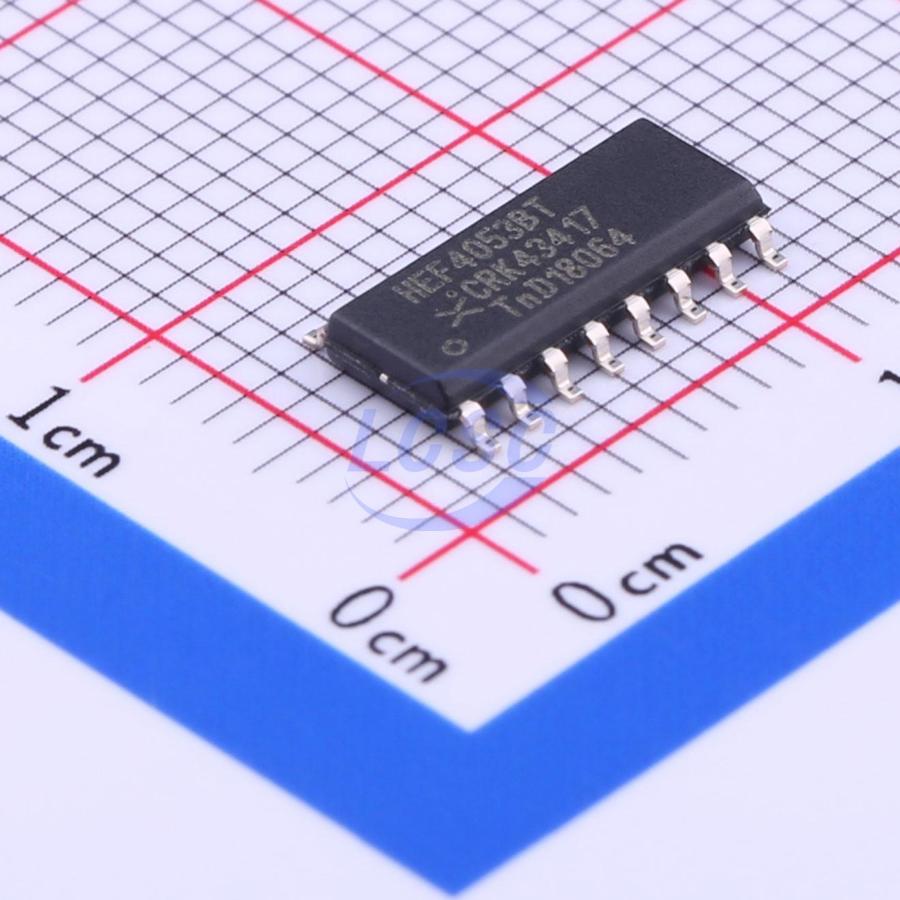

HEF4053BT,653
3V~15V 80Ω 3 SOIC-16 Analog Switches, Multiplexers, Demultiplexers RoHS
SOIC-16ROHS3 CompliantActive
Triple single-pole double-throw analog switch
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4053BT,653
- Store part #
- C6736
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,075 in stock
#C6736
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.75 | ₹203.75 |
| 50+ | ₹32.06 | ₹1,603.00 |
| 150+ | ₹28.33 | ₹4,249.50 |
| 500+ | ₹23.68 | ₹11,840.00 |
| 2,500+ | ₹21.60 | ₹54,000.00 |
| 5,000+ | ₹20.36 | ₹1,01,800.00 |
5 × ₹40.75
₹203.75
excl. GST
₹240.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4053BT,653
₹203.75 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 3V~15V
- Ron
- 80Ω
- Number of Channels
- 3
- Propagation Delay
- 5ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.275 g
Overview
The HEF4053B is a triple single-pole double-throw analog switch (₃ₓ SPDT) suitable for use in analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input (Sn), two independent inputs/outputs (Y0 and Y1) and a common input/output (Z). A digital enable input (E) is common to all switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13-B
- ESD protection: HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-B exceeds 200 V
- Specified from -40 °C to +125 °C
