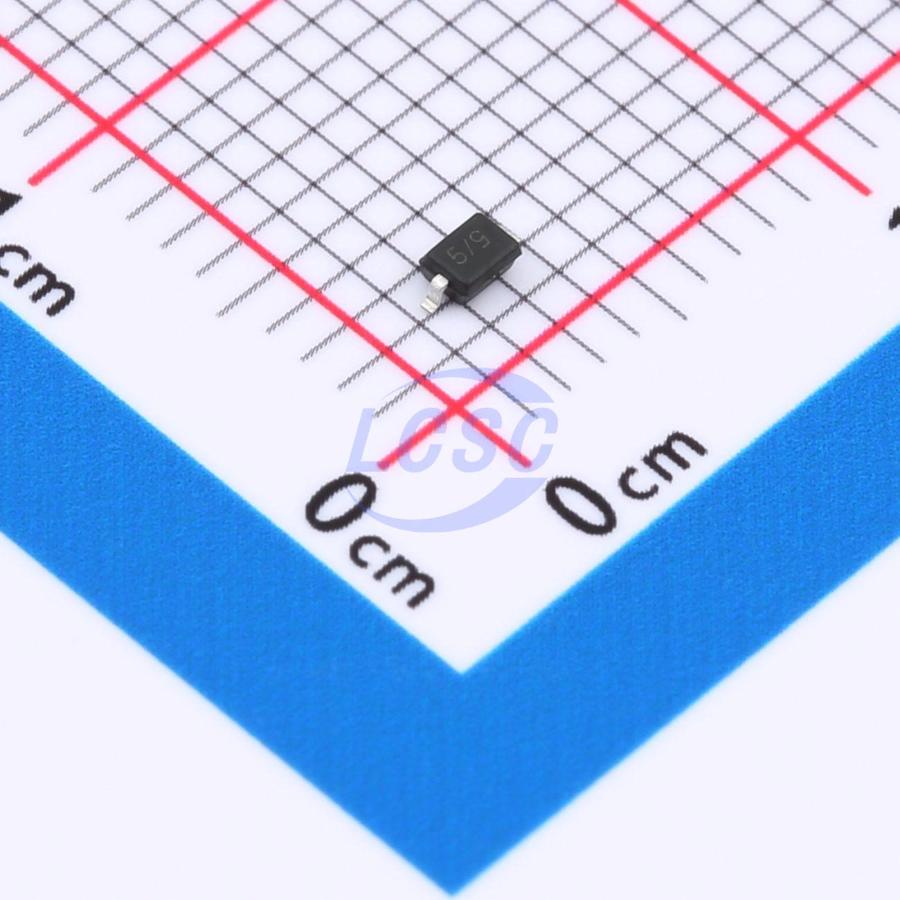

HESD5V0D3B-TP
20VC Clamp 25A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 20VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESD5V0D3B-TP
- Store part #
- C22439700
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22439700
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.31 | ₹106.20 |
| 200+ | ₹4.27 | ₹854.00 |
| 600+ | ₹3.76 | ₹2,256.00 |
| 3,000+ | ₹3.37 | ₹10,110.00 |
| 9,000+ | ₹3.06 | ₹27,540.00 |
| 21,000+ | ₹2.91 | ₹61,110.00 |
20 × ₹5.31
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HESD5V0D3B-TP
₹106.20 for 20 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 7.8V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.014 g
Overview
HESD5V0D3B-TP protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single bidirectional line in applications where an array is not suitable. Package type: SOD-323.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 500W (8/20us)
- Working voltage: 5V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
