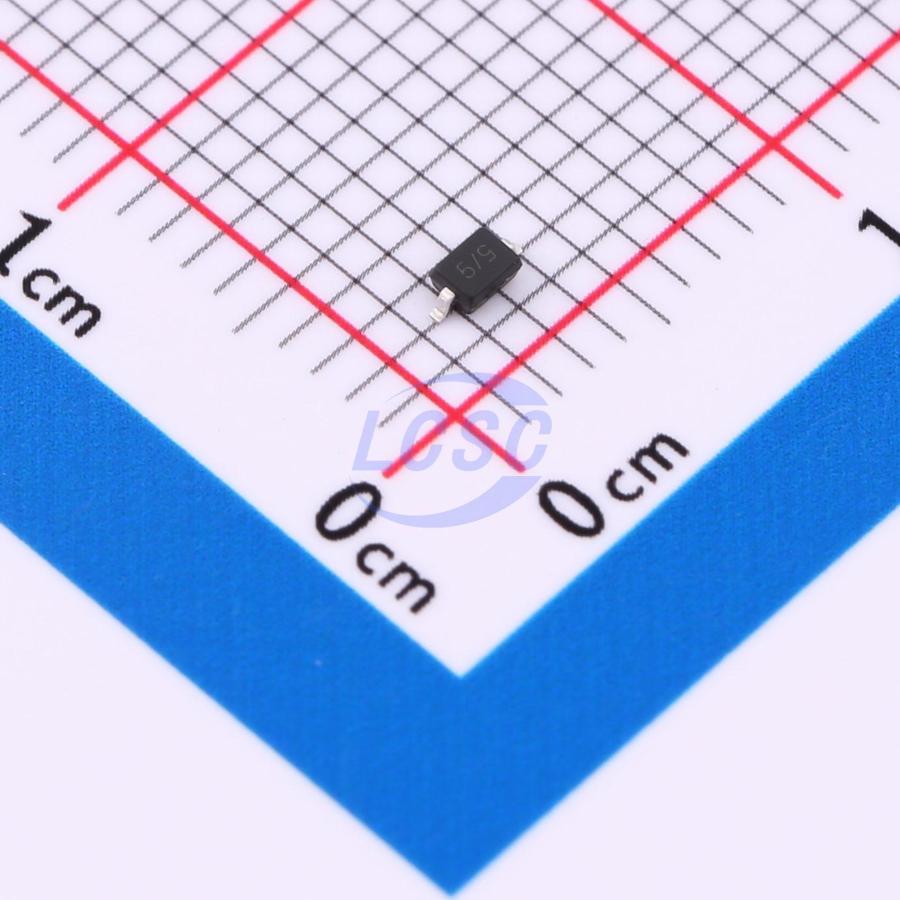

HTESDL5V0B45P1M3
20VC Clamp 25A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 20VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HTESDL5V0B45P1M3
- Store part #
- C22440106
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
310 in stock
#C22440106
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.18 | ₹91.80 |
| 100+ | ₹7.26 | ₹726.00 |
| 300+ | ₹6.30 | ₹1,890.00 |
| 3,000+ | ₹5.58 | ₹16,740.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
| 9,000+ | ₹4.71 | ₹42,390.00 |
10 × ₹9.18
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HTESDL5V0B45P1M3
₹91.80 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 7.8V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.014 g
Overview
HTESDL5V0B45P1M3 protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. The device offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) ±30kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 500W (8/20us)
- Working voltage: 5V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
