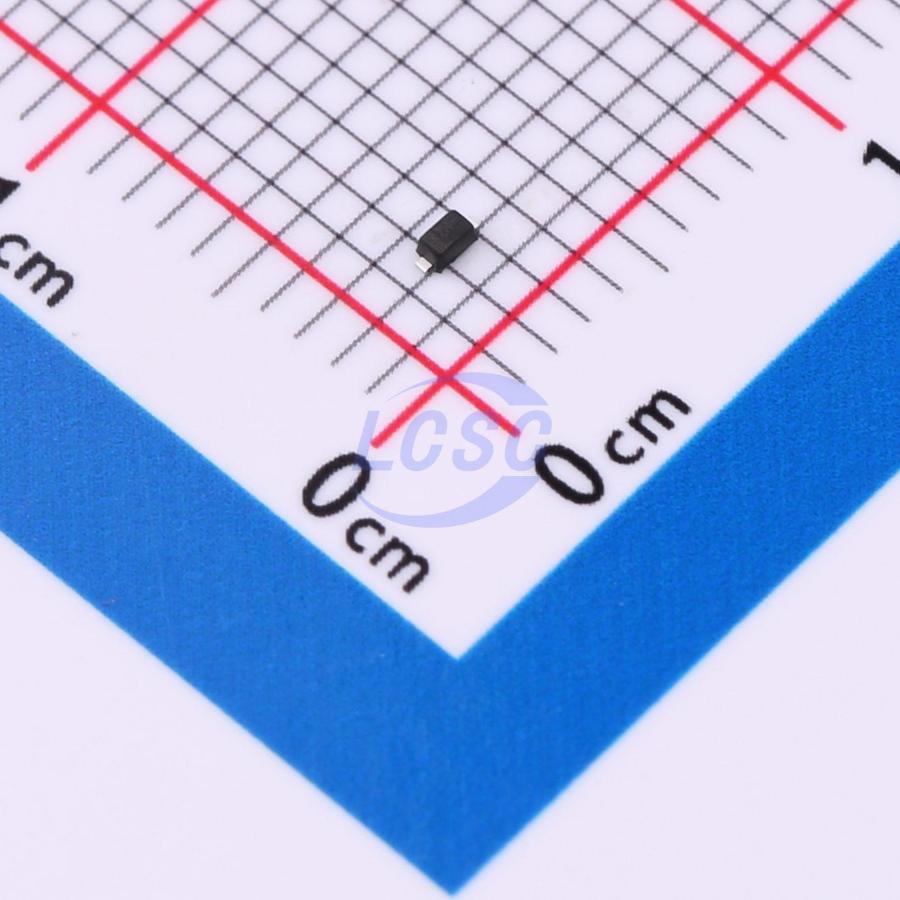

HESD5Z7.0T5G
22.7VC Clamp 7A Ipp ESD DIODE SOD-523
ESD DIODE 7VWM 22.7VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESD5Z7.0T5G
- Store part #
- C22439853
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22439853
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.70 | ₹97.00 |
| 100+ | ₹7.82 | ₹782.00 |
| 300+ | ₹6.87 | ₹2,061.00 |
| 3,000+ | ₹6.17 | ₹18,510.00 |
| 6,000+ | ₹5.60 | ₹33,600.00 |
| 9,000+ | ₹5.32 | ₹47,880.00 |
10 × ₹9.70
₹97.00
excl. GST
₹114.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HESD5Z7.0T5G
₹97.00 for 10 + GST
Specifications
- Clamping Voltage
- 22.7V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 7A
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Voltage - Breakdown
- 7.5V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.012 g
Overview
The HESD5Z7.0T5G device protects sensitive semiconductor components from damage or disruption caused by electrostatic discharge and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. This device offers designers flexibility to protect a single unidirectional line in applications where array configurations are not suitable. Available in SOD-523 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): contact discharge ±8kV, air discharge ±15kV; compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 200W (8/20us)
- Working voltage: 7V
- Protects one Vcc or data line
- Low clamp voltage
- Low leakage current
