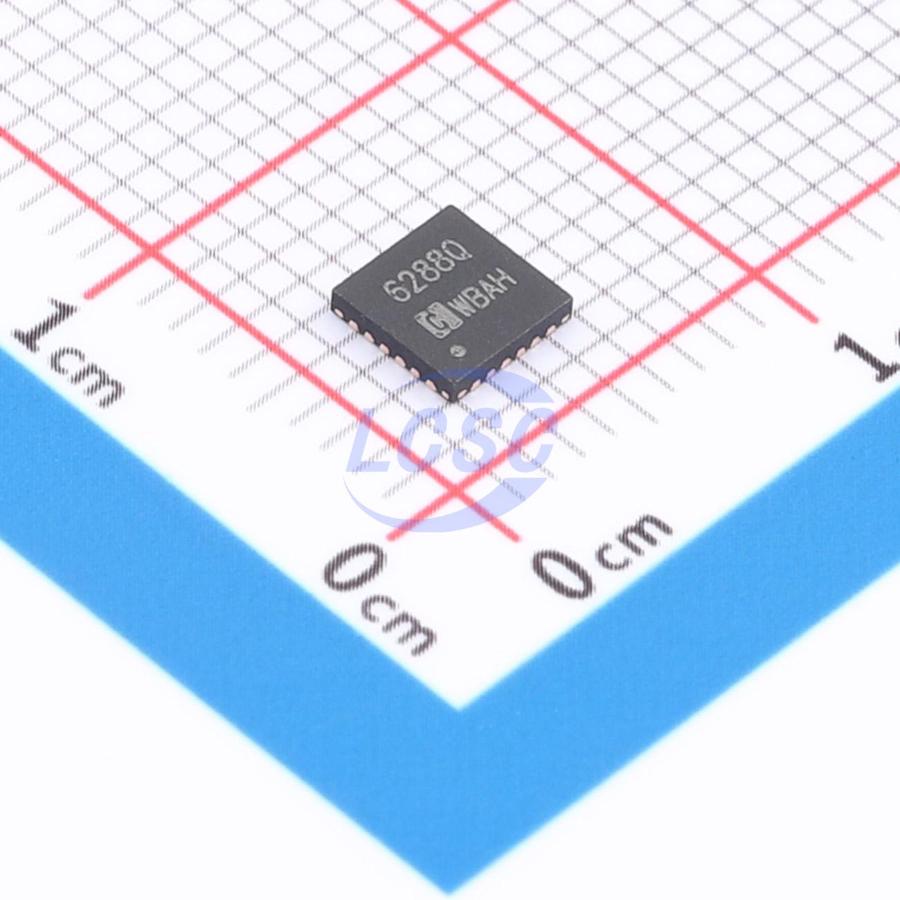

HG6288LQ/TR
4.9V~20V 1.8A 1.5A QFN-24(4x4) Gate Drivers
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG6288LQ/TR
- Store part #
- C49518603
- Package / case
- QFN-24(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,939 in stock
#C49518603
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.38 | ₹52.38 |
| 10+ | ₹46.50 | ₹465.00 |
| 30+ | ₹43.69 | ₹1,310.70 |
| 100+ | ₹40.64 | ₹4,064.00 |
| 500+ | ₹38.90 | ₹19,450.00 |
| 1,000+ | ₹38.04 | ₹38,040.00 |
1 × ₹52.38
₹52.38
excl. GST
₹61.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HG6288LQ/TR
₹52.38 for 1 + GST
Specifications
- Quiescent Current
- 330uA
- Voltage - Supply
- 4.9V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 46ns
- Fall Time
- 45ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
An IC integrating three independent half-bridge gate driver circuits, designed for high-voltage, high-speed driving of MOSFETs and IGBTs, capable of operating at voltages up to +250V. Built-in VCC/VBS undervoltage lockout protection prevents power devices from operating under low-voltage conditions; integrated shoot-through prevention circuitry and dead-time control effectively prevent shoot-through in the driven high-side and low-side MOSFETs or IGBTs, thereby protecting power devices. Additionally, the IC features built-in input signal filtering to suppress input noise interference.
Applications
- Three-phase brushless DC motor driver
Key features
- Floating voltage +250V
- Supply voltage operating range: 4.9V~20V
- Integrated three independent half-bridge drivers
- Maximum output current +1.5A / -1.8A
- 3.3V/5V input logic compatible
- VCC/VBS undervoltage protection
- Built-in shoot-through prevention
- Built-in 250ns dead time
- Built-in input filter function
- Output in-phase with input
