HXY MOSFETDatasheet (PDF)

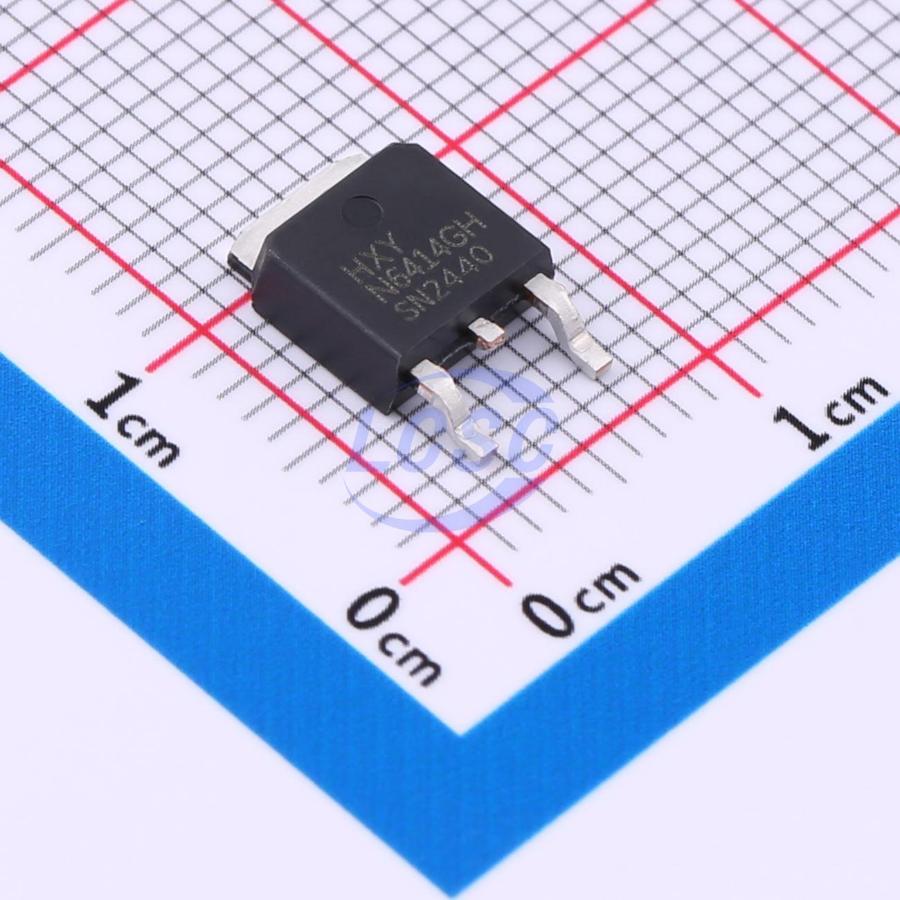

HNTD6414ANT4G
N-Channel 100V 30A 52.1W Surface Mount TO-252-2L
TO-252-2LRoHSActive
MOSFET N-CH 100V 30A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HNTD6414ANT4G
- Store part #
- C42401355
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
308 in stock
#C42401355
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.22 | ₹103.22 |
| 10+ | ₹83.02 | ₹830.20 |
| 30+ | ₹73.02 | ₹2,190.60 |
| 100+ | ₹63.03 | ₹6,303.00 |
| 500+ | ₹57.15 | ₹28,575.00 |
| 1,000+ | ₹54.11 | ₹54,110.00 |
1 × ₹103.22
₹103.22
excl. GST
₹121.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HNTD6414ANT4G
₹103.22 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 137pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 3.848nF
- Pd - Power Dissipation
- 52.1W
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.405 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSTD20NF10T4#C42401356HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 60 | ₹37.82 · 60 in stock | View |
 | HXY30N10D#C5148652HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 285 | ₹38.92 · 285 in stock | View |
 | HD7258#C5451647HXY MOSFET · TO252-2L | HXY MOSFET | TO252-2L | 5 | ₹32.16 · 5 in stock | View |
 | HMDD1902#C42401380HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹44.11 · 20 in stock | View |
 | IRFR3411TRPBF-HXY#C20606263HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 317 | ₹69.15 · 317 in stock | View |
