HXY MOSFETDatasheet (PDF)

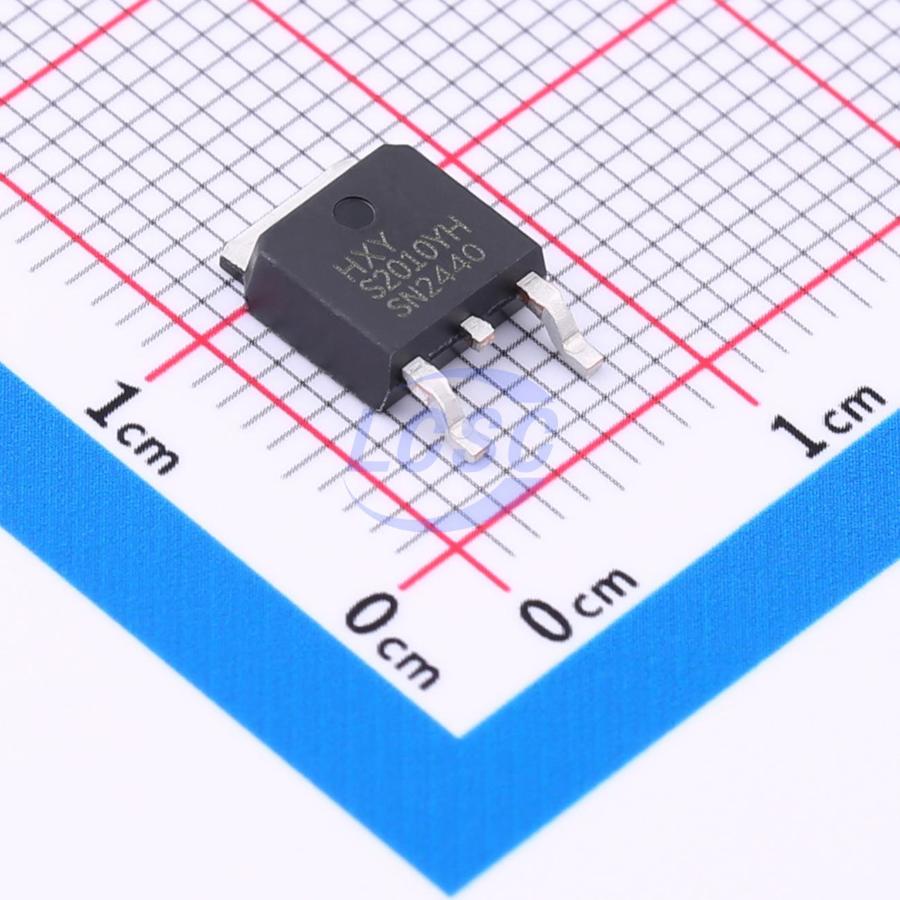

HSTD20NF10T4
N-Channel 100V 30A 52.1W TO-252-2L(DPAK)
TO-252-2L(DPAK)RoHSActive
MOSFET N-CH 100V 30A TO-252-2L(DPAK)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTD20NF10T4
- Store part #
- C42401356
- Package / case
- TO-252-2L(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C42401356
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.82 | ₹189.10 |
| 50+ | ₹30.30 | ₹1,515.00 |
| 150+ | ₹27.07 | ₹4,060.50 |
| 500+ | ₹23.05 | ₹11,525.00 |
| 2,500+ | ₹21.25 | ₹53,125.00 |
| 5,000+ | ₹20.18 | ₹1,00,900.00 |
5 × ₹37.82
₹189.10
excl. GST
₹223.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HSTD20NF10T4
₹189.10 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 137pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 3.848nF
- Pd - Power Dissipation
- 52.1W
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.409 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HNTD6414ANT4G#C42401355HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 308 | ₹103.22 · 308 in stock | View |
 | HXY30N10D#C5148652HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 285 | ₹38.92 · 285 in stock | View |
 | HD7258#C5451647HXY MOSFET · TO252-2L | HXY MOSFET | TO252-2L | 5 | ₹32.16 · 5 in stock | View |
 | HMDD1902#C42401380HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹44.11 · 20 in stock | View |
 | IRFR3411TRPBF-HXY#C20606263HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 317 | ₹69.15 · 317 in stock | View |
