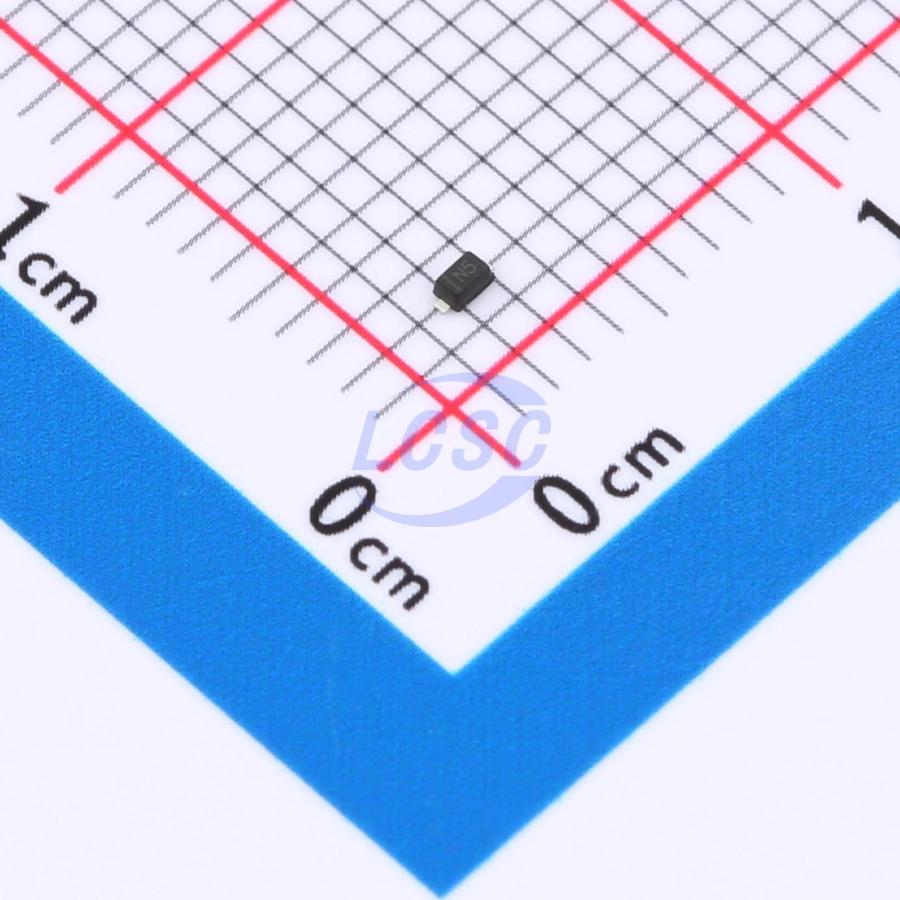

HPJSD24TS-AU
55VC Clamp 9A Ipp ESD DIODE SOD-523
ESD DIODE 24VWM 55VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPJSD24TS-AU
- Store part #
- C22439864
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22439864
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.34 | ₹93.40 |
| 100+ | ₹7.38 | ₹738.00 |
| 300+ | ₹6.40 | ₹1,920.00 |
| 3,000+ | ₹5.68 | ₹17,040.00 |
| 6,000+ | ₹5.08 | ₹30,480.00 |
| 9,000+ | ₹4.79 | ₹43,110.00 |
10 × ₹9.34
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPJSD24TS-AU
₹93.40 for 10 + GST
Specifications
- Clamping Voltage
- 55V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 330W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
This device protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single unidirectional line in applications where arrays are not practical.
Key features
- Compact package outline
- Low package height
- Breakdown voltage: 24V
- Peak power up to 330W under 8×20μs pulse
- Low leakage current
- Typical response time less than 1ns
- Compliant with Human Body Model Level 3 ESD rating
- Compliant with IEC61000-4-2 Level 4 ESD protection standard
- Compliant with IEC61000-4-4 Level 4 EFT protection standard
- RoHS compliant materials
Alternatives
Similar parts — check the datasheet before substituting.
