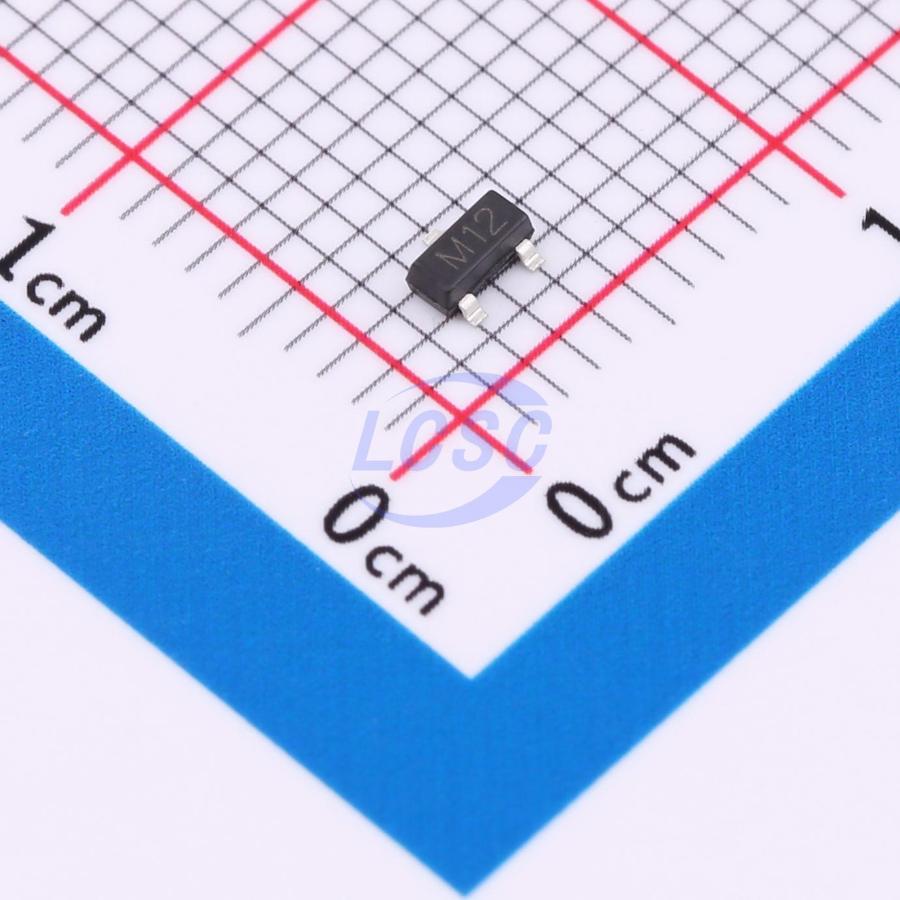

HSM12-7
32VC Clamp 11A Ipp ESD DIODE SOT-23
ESD DIODE 12VWM 32VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSM12-7
- Store part #
- C22440056
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22440056
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.75 | ₹77.50 |
| 100+ | ₹6.13 | ₹613.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.22 | ₹25,320.00 |
| 9,000+ | ₹3.98 | ₹35,820.00 |
10 × ₹7.75
₹77.50
excl. GST
₹91.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSM12-7
₹77.50 for 10 + GST
Specifications
- Clamping Voltage
- 32V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
The HSM12-7 device protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect two unidirectional lines in applications where arrays are not suitable.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±30kV (contact discharge), ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 12V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
