HXY MOSFETDatasheet (PDF)

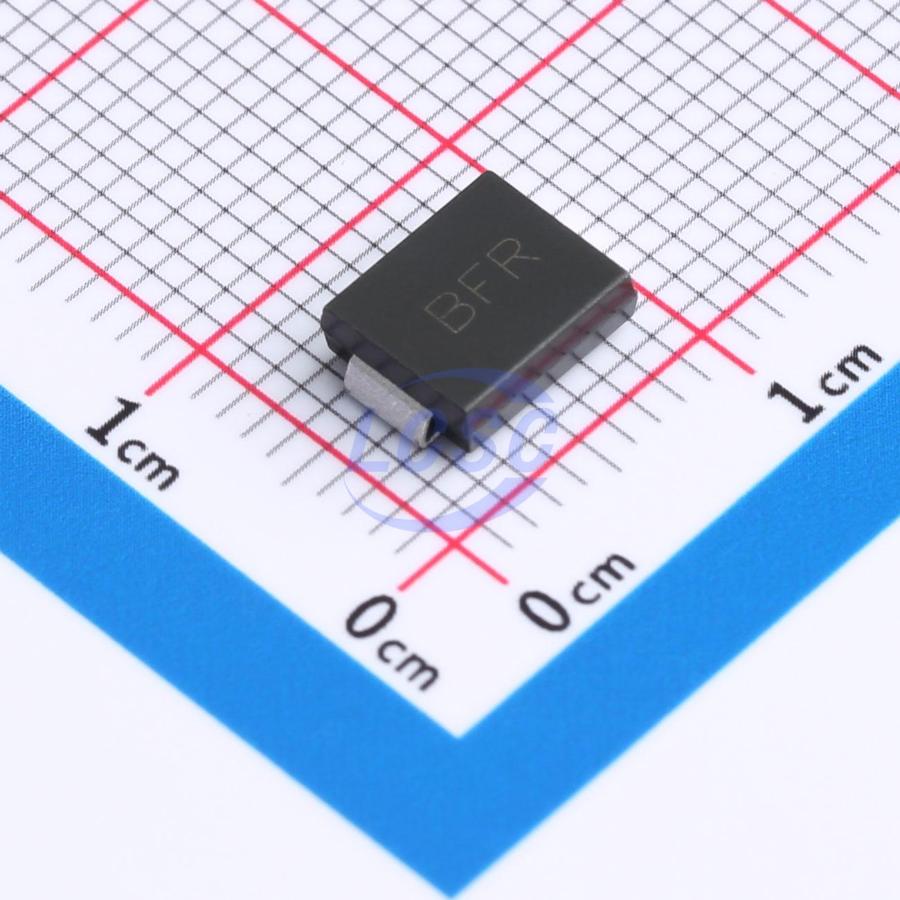

HSMCJ40CAE357T
54.5VC Clamp 31A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)RoHSActive
TVS DIODE 40VWM 54.5VC SMC(DO-214AB)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSMCJ40CAE357T
- Store part #
- C42401973
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C42401973
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.12 | ₹185.60 |
| 50+ | ₹29.41 | ₹1,470.50 |
| 150+ | ₹26.10 | ₹3,915.00 |
| 500+ | ₹21.98 | ₹10,990.00 |
| 3,000+ | ₹20.14 | ₹60,420.00 |
| 6,000+ | ₹19.04 | ₹1,14,240.00 |
5 × ₹37.12
₹185.60
excl. GST
₹219.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSMCJ40CAE357T
₹185.60 for 5 + GST
Specifications
- Clamping Voltage
- 54.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 31A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 49.1V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.299 g
Overview
Applications
- Input/Output Interface
- AC/DC Power Supply
- Low-Frequency Signal Transmission Line
Key features
- Surface mount application, optimized board space
- Low-profile package
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
- Fast response time
- Typical reverse current less than 1μA above 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ40CA#C7466410HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | 90 | ₹12.71 · 90 in stock | View |
 | HSM15T36CAY#C42402056HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | 5 | ₹45.00 · 5 in stock | View |
 | SMCJ36CA#C7495268HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | 205 | ₹11.62 · 205 in stock | View |
 | HSM15T47CAY#C42402031HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | On request | ₹39.15 · 0 in stock | View |
