HXY MOSFETDatasheet (PDF)

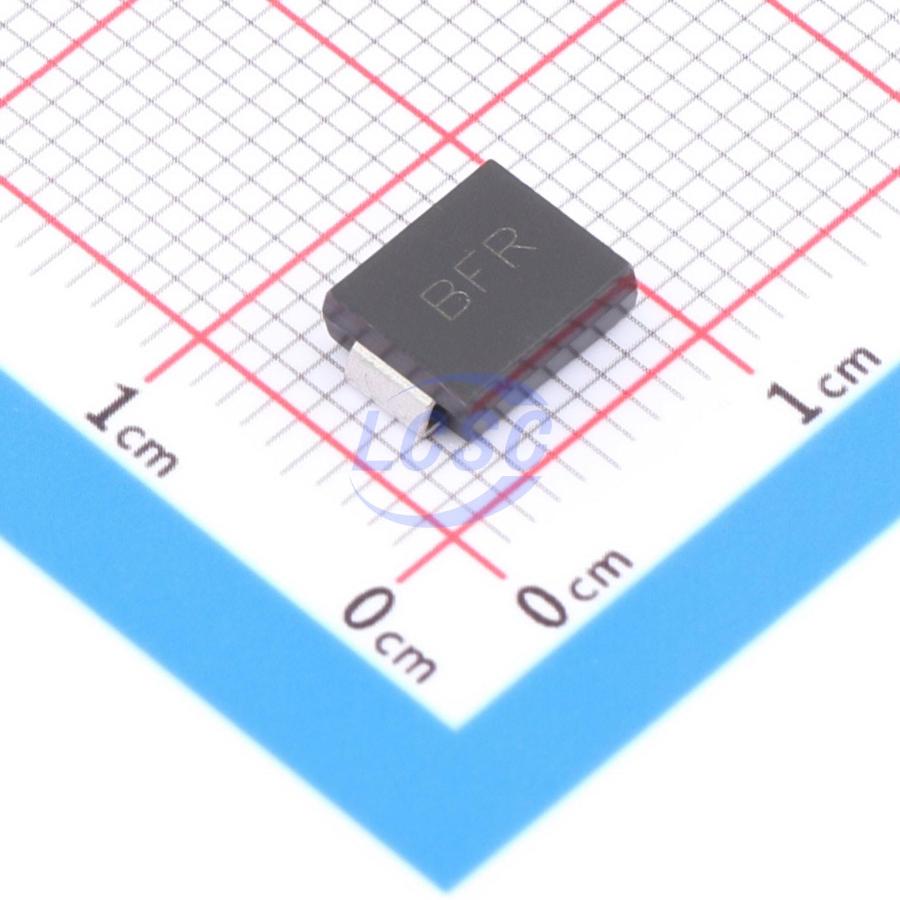

SMCJ40CA
64.5VC Clamp 23.3A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS CompliantActive
TVS DIODE 40VWM 64.5VC SMC(DO-214AB)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMCJ40CA
- Store part #
- C7466410
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C7466410
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.71 | ₹63.55 |
| 50+ | ₹10.31 | ₹515.50 |
| 150+ | ₹9.12 | ₹1,368.00 |
| 500+ | ₹8.22 | ₹4,110.00 |
| 3,000+ | ₹6.24 | ₹18,720.00 |
| 6,000+ | ₹5.87 | ₹35,220.00 |
5 × ₹12.71
₹63.55
excl. GST
₹74.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ40CA
₹63.55 for 5 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 23.3A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1pA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.366 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSMCJ40CAE357T#C42401973HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | 170 | ₹37.12 · 170 in stock | View |
 | HSM15T36CAY#C42402056HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | 5 | ₹45.00 · 5 in stock | View |
 | SMCJ36CA#C7495268HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | 205 | ₹11.62 · 205 in stock | View |
 | HSM15T47CAY#C42402031HXY MOSFET · SMC(DO-214AB) | HXY MOSFET | SMC(DO-214AB) | On request | ₹39.15 · 0 in stock | View |
