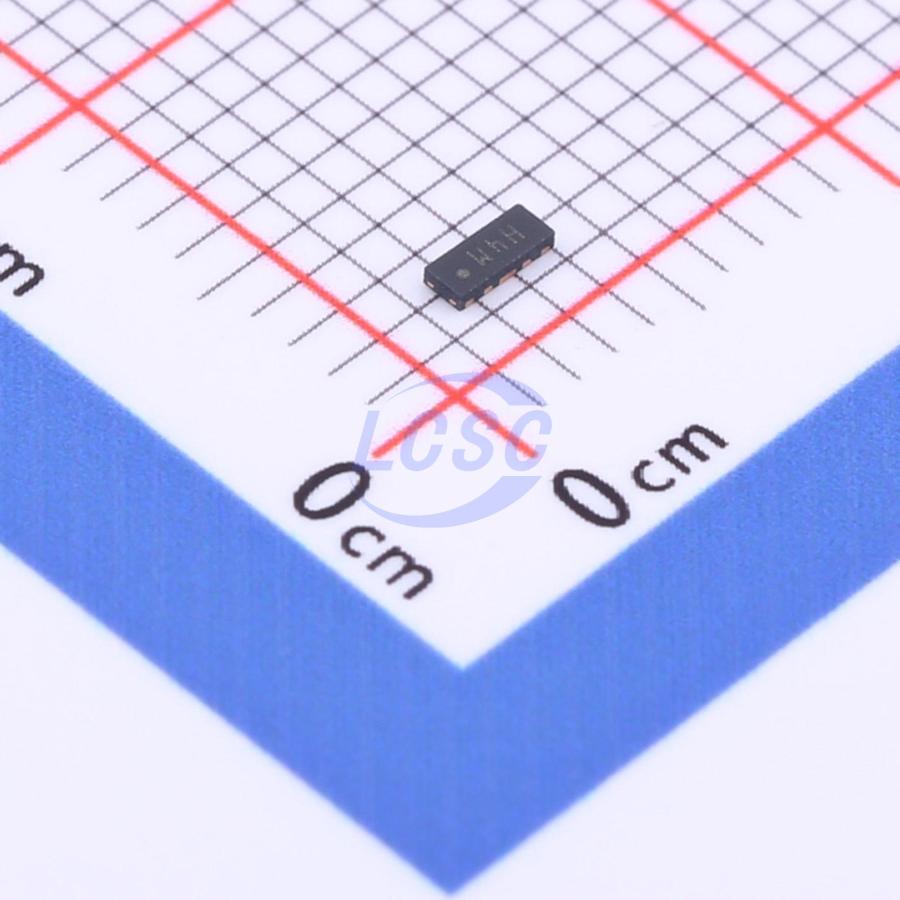

HSP061-4M10
15VC Clamp ESD DIODE UQFN-10(1x2.5)
ESD DIODE 15VC UQFN-10(1x2.5)
- Manufacturer
- ST
- Manufacturer part #
- HSP061-4M10
- Store part #
- C2844254
- Package / case
- UQFN-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C2844254
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.55 | ₹177.75 |
| 50+ | ₹34.98 | ₹1,749.00 |
| 150+ | ₹34.60 | ₹5,190.00 |
| 500+ | ₹34.21 | ₹17,105.00 |
5 × ₹35.55
₹177.75
excl. GST
₹209.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSP061-4M10
₹177.75 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -40℃~+150℃
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 70nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The HSP061-4M10 is a 4-channel ESD array with a rail to rail architecture designed specifically for the protection of high speed differential lines. The ultralow variation of the capacitance ensures very low influence on signal-skew. The large bandwidth make the device compatible with 3.4 Gbps. The device is packaged in uQFN2.5 mm×1 mm with a 500 µm pitch, which minimizes the PCB area.
Applications
- HDMI 1.3 and 1.4
- USB3.0
- Digital Video Interface
- Display Port
- Serial ATA
- Thunderbolt
Key features
- Flow-through routing to keep signal integrity
- Ultralarge bandwidth: 8.7 GHz
- Ultralow capacitance: 0.3 pF
- Very Low dynamic resistance: 0.48 Ω
- Low leakage current: 70 nA at 25 °C
- 100 Ω differential impedance
- Extended operating junction temperature range: -40 °C to 150 °C
- Thin package: 0.5 mm max.
- RoHS compliant
- High ESD robustness of the equipment
- Suitable for high density boards
- Complies with following standards:
- MIL-STD 883G Method 3015-7 Class 3B: – 8 kV
- IEC 61000-4-2 level 4: 8 kV (contact discharge), 15 kV (air discharge)
