HXY MOSFETDatasheet (PDF)

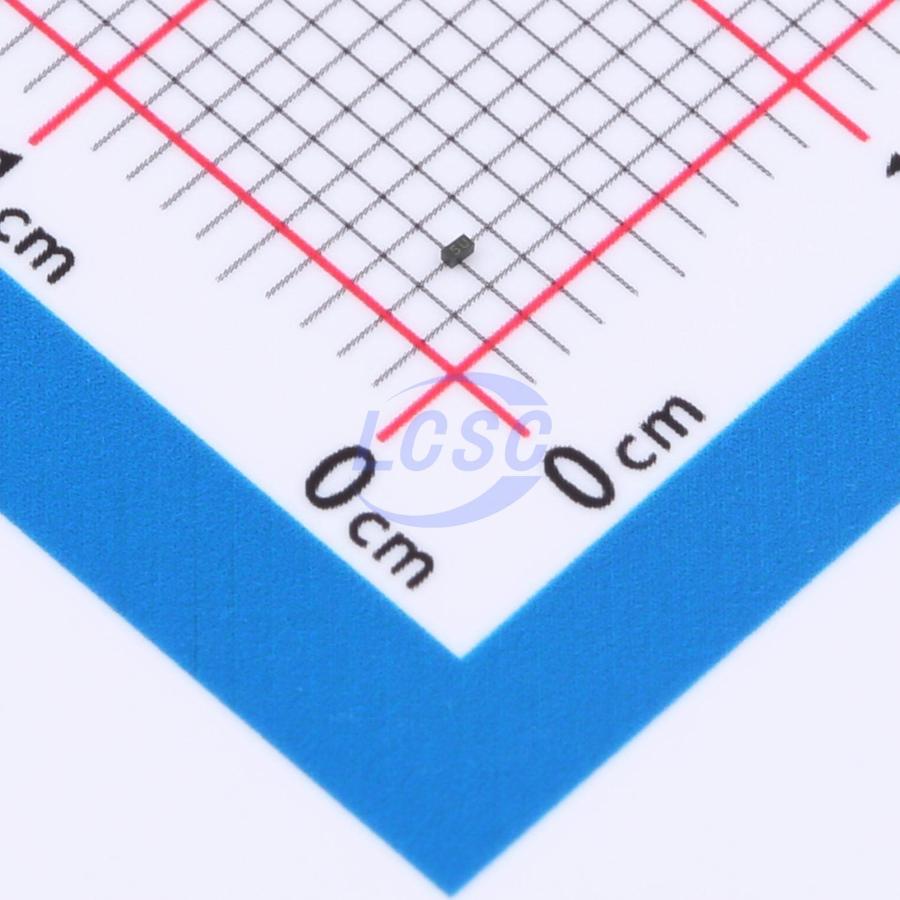

HSP3208-01UTG
25VC Clamp 3A Ipp ESD DIODE DFN0603-2L
DFN0603-2LRoHSActive
ESD DIODE 5VWM 25VC DFN0603-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSP3208-01UTG
- Store part #
- C25503837
- Package / case
- DFN0603-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C25503837
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.61 | ₹63.05 |
| 50+ | ₹9.96 | ₹498.00 |
| 150+ | ₹8.64 | ₹1,296.00 |
| 500+ | ₹7.66 | ₹3,830.00 |
| 2,500+ | ₹6.87 | ₹17,175.00 |
| 5,000+ | ₹6.47 | ₹32,350.00 |
5 × ₹12.61
₹63.05
excl. GST
₹74.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
HSP3208-01UTG
₹63.05 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A
- Peak Pulse Power Dissipation (Ppp)
- 75W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.006 g
Overview
Key features
- Compact footprint: 0.61 mm × 0.31 mm
- Low profile: 0.28 mm
- Low leakage current
- Typical response time < 1 ns
- ESD rating compliant with Human Body Model Level 3
- IEC61000-4-2 Level 4 ESD protection
- Lead-free device
- Declared materials RoHS compliant and halogen-free
