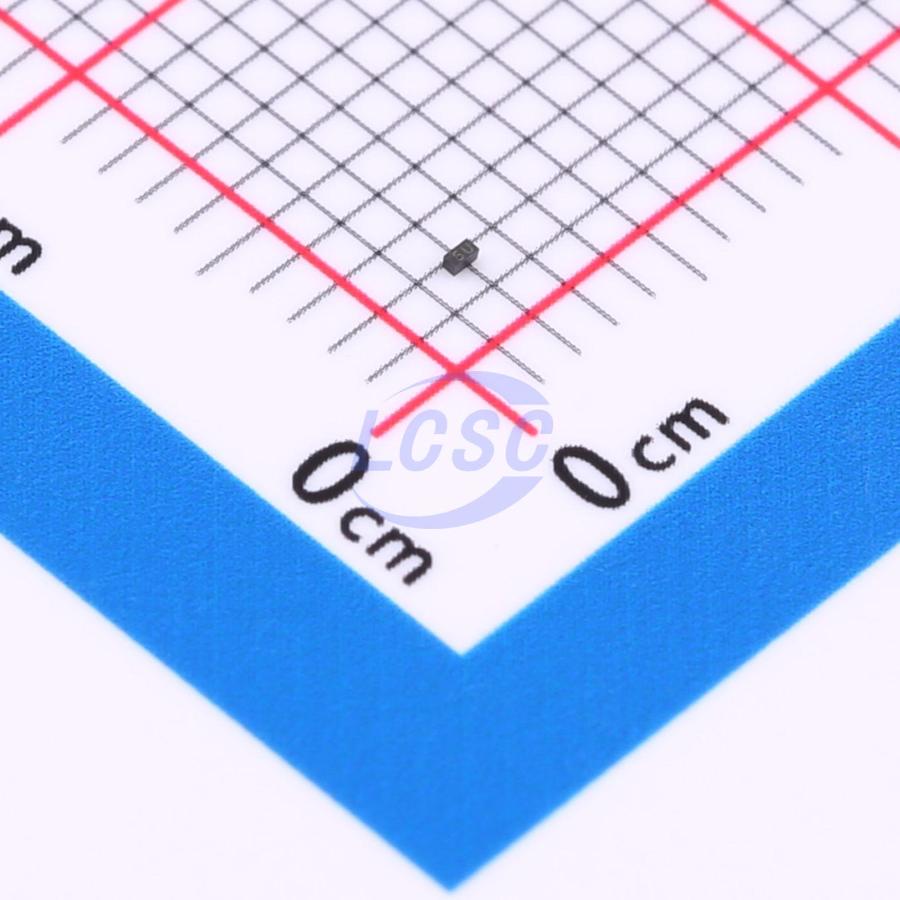

HSTN061050BL15
25VC Clamp 3A Ipp ESD DIODE DFN0603-2L
ESD DIODE 5VWM 25VC DFN0603-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTN061050BL15
- Store part #
- C25503838
- Package / case
- DFN0603-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
270 in stock
#C25503838
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.92 | ₹69.20 |
| 100+ | ₹5.48 | ₹548.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 1,000+ | ₹4.21 | ₹4,210.00 |
| 5,000+ | ₹3.77 | ₹18,850.00 |
| 12,000+ | ₹3.55 | ₹42,600.00 |
10 × ₹6.92
₹69.20
excl. GST
₹81.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
HSTN061050BL15
₹69.20 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A
- Peak Pulse Power Dissipation (Ppp)
- 75W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.006 g
Overview
This device protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays cannot be used.
Key features
- Compact package: 0.61 mm × 0.31 mm
- Low profile: 0.28 mm
- Low leakage current
- Typical response time < 1 ns
- ESD rating per Human Body Model Level 3
- IEC61000-4-2 Level 4 ESD protection
- Lead-free device
- Declared material compliant with RoHS and halogen-free requirements.
