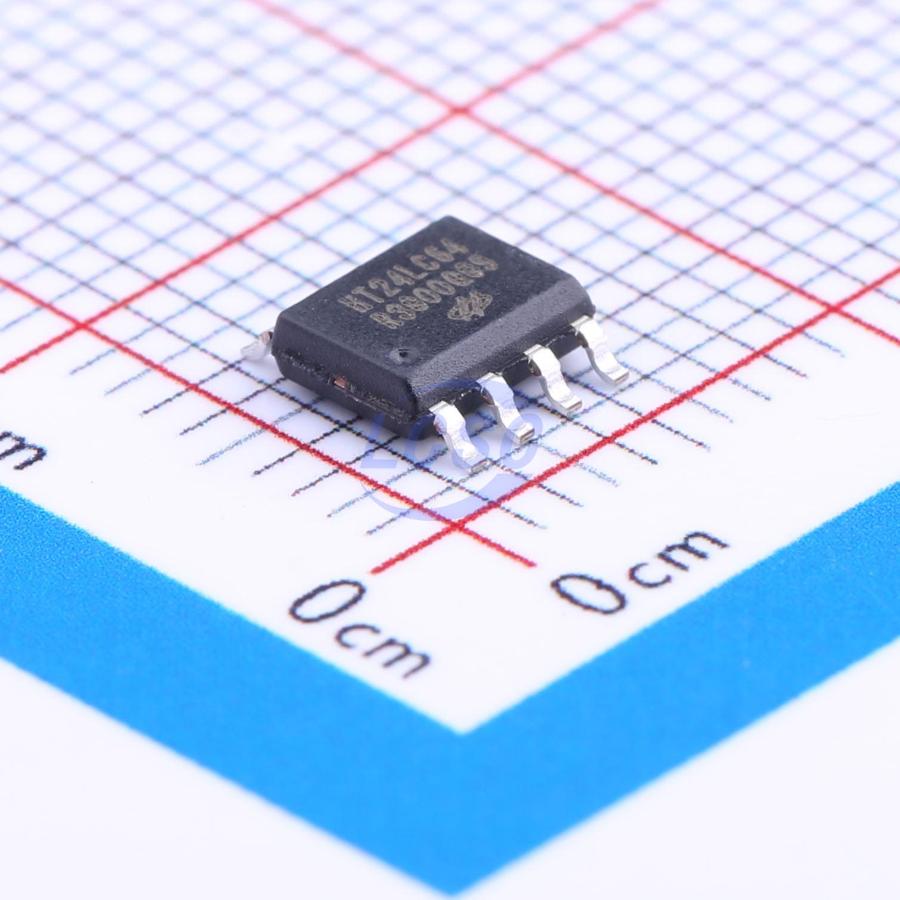

HT24LC64
64Kbit 400kHz I2C SOP-8 Memory
CMOS 64K 2-Wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C73710
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.34 | ₹146.70 |
| 50+ | ₹23.31 | ₹1,165.50 |
| 150+ | ₹20.73 | ₹3,109.50 |
| 500+ | ₹17.50 | ₹8,750.00 |
| 2,500+ | ₹14.53 | ₹36,325.00 |
| 5,000+ | ₹13.67 | ₹68,350.00 |
5 × ₹29.34
₹146.70
excl. GST
₹173.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT24LC64
₹146.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;5mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
The HT24LC64 is a 64K-bit 2-wire serial read/write non-volatile memory device using the CMOS foating gate process. Its 65536 bits of memory are organized into 8192 words and 8 bits per word. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. Up to eight HT24LC64 devices may be connected to the same two-wire bus. The HT24LC64 has high reliability endurance of 1M erase/write cycles and 40-year data retention.
Key features
- Operating voltage: 1.8V ~ 5.5V for temperature -40℃ to +85℃
- Low power consumption - Operation: 5mA max. - Standby: 3μA max.
- Internal organization: 8192 x 8
- 2-wire serial interface
- Write cycle time: 5ms max.
- Automatic erase-before-write operation
- Partial page write allowed
- 32-byte Page Write Mode
- Write operation with built-in timer
- Hardware controlled write protection
- 40-year data retention 10^6 rewrite cycles per word
- 8-pin SOP package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BR24T64FJ-WE2#C694089ROHM · SOIC-8 | ROHM | SOIC-8 | 1,615 | ₹48.41 · 1,615 in stock | View |
 | AT24C64D-SSHM-T-TUDI#C36533635Tudi · SOP-8 | Tudi | SOP-8 | 1,510 | ₹29.98 · 1,510 in stock | View |
 | 24AA64-I/SN#C1349006MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 35 | ₹218.35 · 35 in stock | View |
 | 24AA64T-I/SN#C45707MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 564 | ₹93.35 · 564 in stock | View |
 | 24AA64-E/SN#C615134MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹206.14 · 4 in stock | View |
