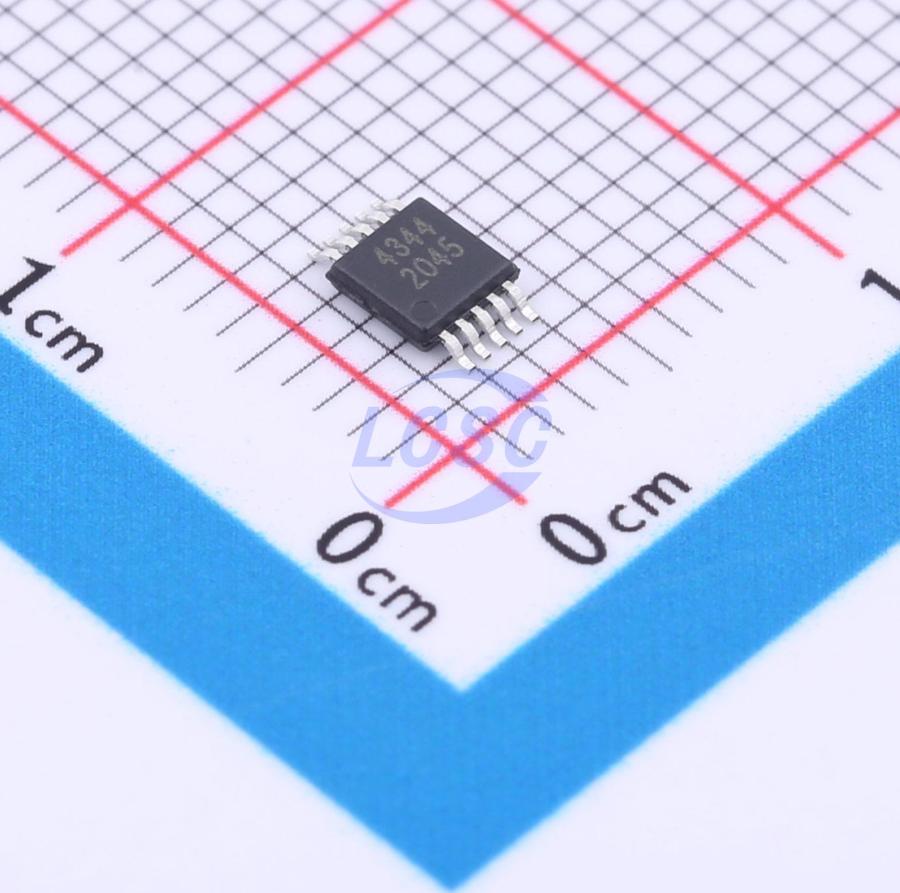

HT4344ARMZ

The HT4344 family members are complete, stereo digital-to-analog output systems including interpolation, multi-bit D/A conversion and output analog filtering in a 10-pin package. The HT4344/5/6/8 support all major audio data interface formats, and the individual devices differ only in the supported interface format. The HT4344 family is based on a fourth order multi-bit delta-sigma modulator with a linear analog low-pass filter. This family also includes auto-speed mode detection using both sample rate and master clock ratio as a method of auto-selecting sampling rates between 2 kHz and 200 kHz. The HT4344 family contains on-chip digital de-emphasis, operates from a single +3.3 V or +5 V power supply, and requires minimal support circuitry. These features are ideal for DVD players & recorders, digital televisions, home theater and set top box products, and automotive audio systems.

Applications

• DVD players & recorders
• digital televisions
• home theater and set top box products
• automotive audio systems

Key features

• Multi-bit Delta-Sigma Modulator
• 24-Bit Conversion
• Automatically Detects Sample Rates up to 192 kHz
• 105 dB Dynamic Range
• -95 dB THD+N
• Low Clock Jitter Sensitivity
• Single +3.3 V or +5 V Power Supply
• Filtered Line Level Outputs
• On-Chip Digital De-emphasis
• Popguard™ Technology
• Small 10-Pin TSSOP Package
