HTCSEMI

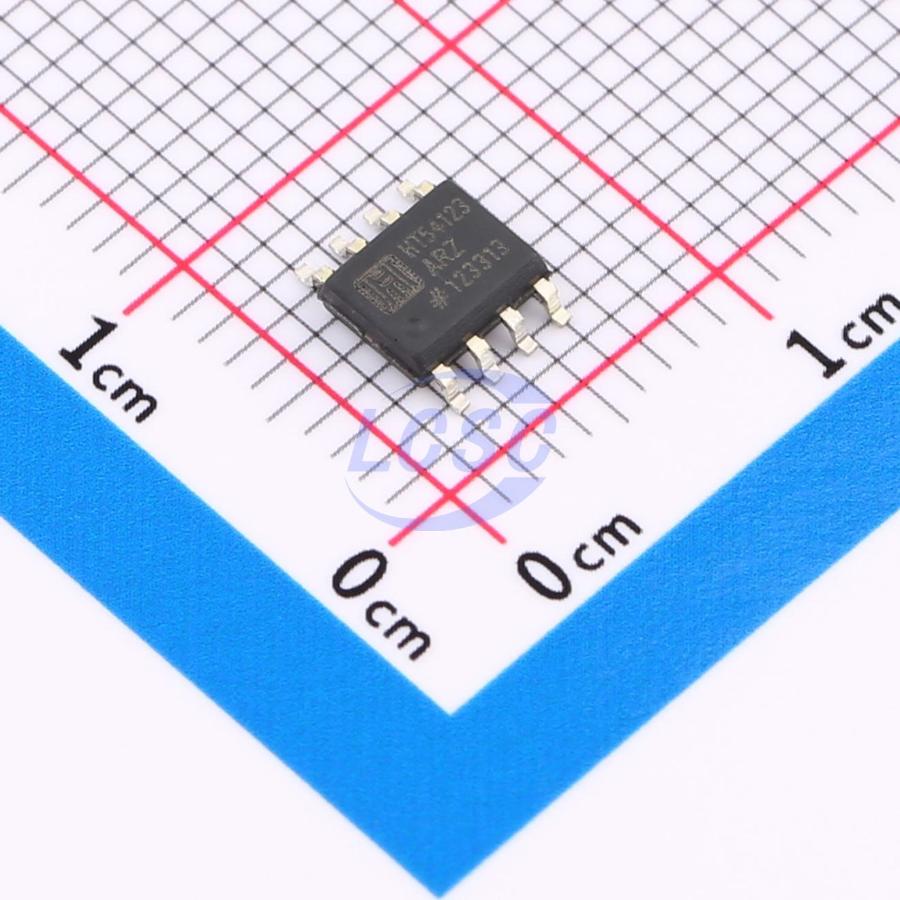

HT54123ARZ

SOP-8 Power Management - Specialized

SOP-8RoHSActive

Earth Leakage Detector

Manufacturer: HTCSEMI
Manufacturer part #: HT54123ARZ
Store part #: C2874957
Package / case: SOP-8
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,309 in stock

#C2874957

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹26.21	₹26.21
10+	₹20.84	₹208.40
30+	₹18.54	₹556.20
100+	₹15.66	₹1,566.00
500+	₹14.39	₹7,195.00
1,000+	₹12.41	₹12,410.00

Quantity (min 1)

1 × ₹26.21

₹26.21

excl. GST

₹30.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT54123ARZ

₹26.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Current trip function
Operating Temperature: -25℃~+80℃
Action Time (Ton): 3ms
Tripping Voltage: 16mV
Voltage - Supply: 12V~20V
Supply Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.51 g

Overview

The HT54123 is designed for use in earth leakage circuit interrupters, for stable operation of the AC line in breakers. The input of the differential amplifier is connected to the secondary coil of ZCT(Zero Current Transformer). The amplified output of differential amplifier is integrated at external capacitor to gain adequate time delay that is specified in KSC4613. The level comparator generates high level when earth leakage current is greater than the fixed level.
