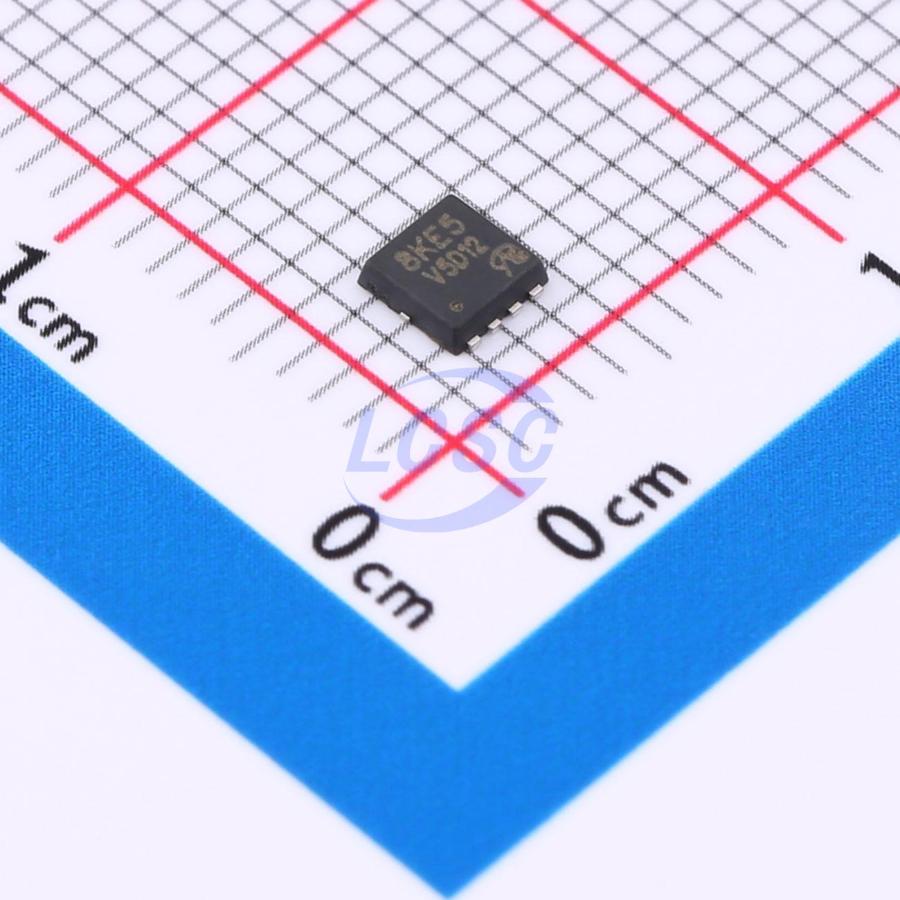

HT8KE5TB1-VB
N-Channel 100V 12.1A 2.5W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 100V 12.1A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HT8KE5TB1-VB
- Store part #
- C47993835
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993835
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.12 | ₹112.12 |
| 10+ | ₹95.57 | ₹955.70 |
| 30+ | ₹87.08 | ₹2,612.40 |
| 100+ | ₹78.81 | ₹7,881.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹112.12
₹112.12
excl. GST
₹132.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HT8KE5TB1-VB
₹112.12 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 12.1A
- Output Capacitance(Coss)
- 7pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 5.2pF
- RDS(on)
- 86mΩ@6V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Applications
- DC/DC conversion
- Primary-side switching
- Synchronous rectification
- Industrial applications
- 48V battery monitoring
- LED driver
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
