VBsemi ElecDatasheet (PDF)

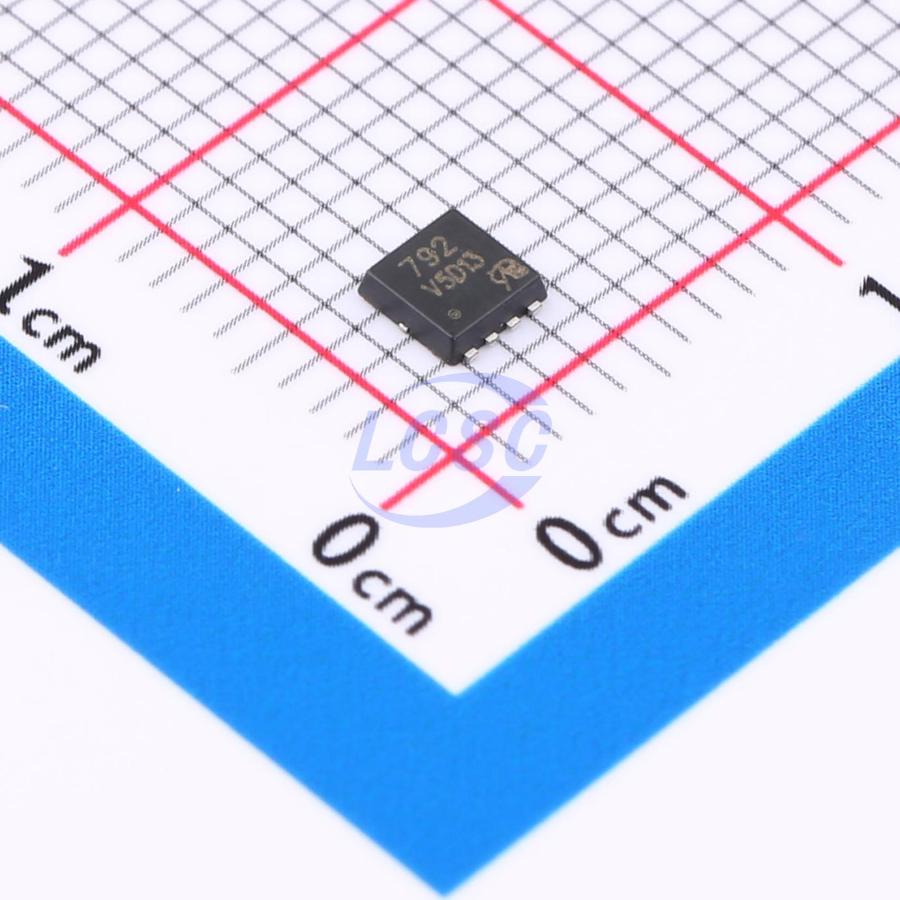

IRFHM792TRPBF-VB
N-Channel 100V 12.1A 25W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 100V 12.1A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFHM792TRPBF-VB
- Store part #
- C47993799
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993799
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.55 | ₹102.55 |
| 10+ | ₹85.78 | ₹857.80 |
| 30+ | ₹77.50 | ₹2,325.00 |
| 100+ | ₹69.23 | ₹6,923.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹102.55
₹102.55
excl. GST
₹121.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IRFHM792TRPBF-VB
₹102.55 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 12.1A
- Output Capacitance(Coss)
- 7pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 86mΩ@6V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Applications
- DC/DC Conversion
- Primary-Side Switching
- Synchronous Rectification
- Industrial Applications
- 48V Battery Monitoring
- LED Driver
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT8KE5TB1-VB#C47993835VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹112.12 · 10 in stock | View |
 | SI7922DN-T1-E3-VB#C47993746VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | On request | ₹89.04 · 0 in stock | View |
 | SI7922DN-T1-GE3-VB#C47993745VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | On request | ₹89.04 · 0 in stock | View |
| VBQF3101M#C42412517VBsemi Elec · DFN-8-EP(3x3) | VBsemi Elec | DFN-8-EP(3x3) | On request | ₹111.07 · 0 in stock | View | |
 | SIS990DN-T1-GE3-VB#C47993742VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | On request | ₹101.88 · 0 in stock | View |
