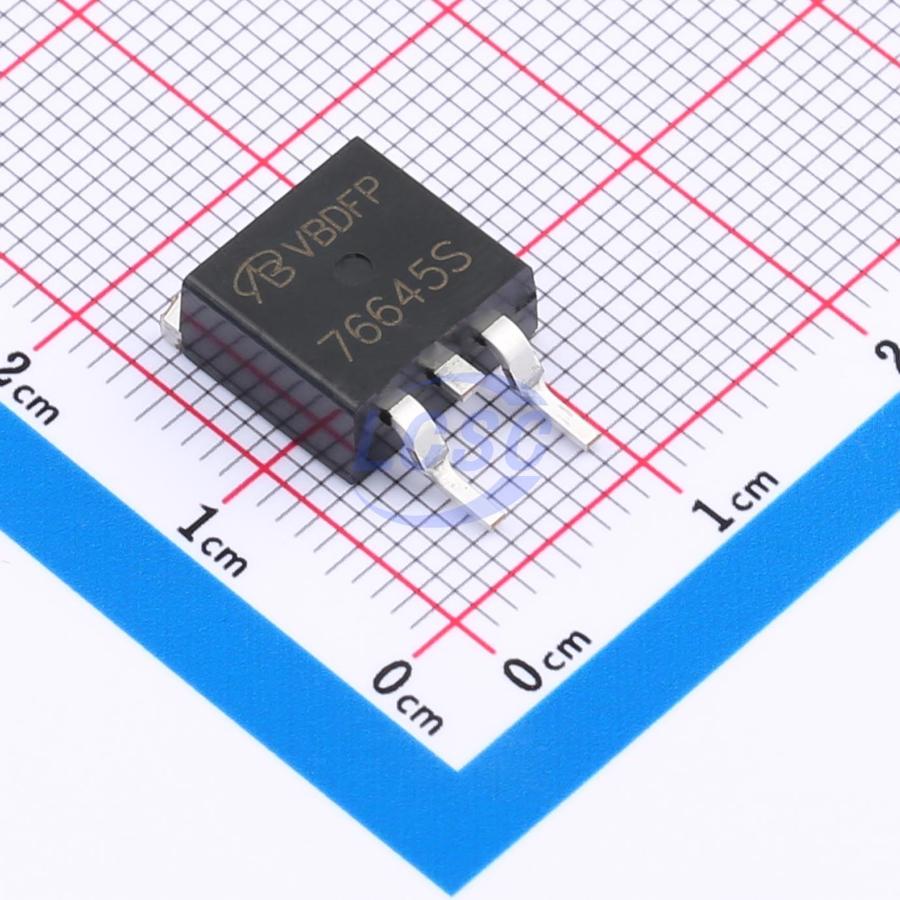

HUFA76645S3ST_F085-VB
N-Channel 100V 100A 250W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HUFA76645S3ST_F085-VB
- Store part #
- C20417709
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C20417709
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.88 | ₹147.88 |
| 10+ | ₹123.30 | ₹1,233.00 |
| 50+ | ₹109.86 | ₹5,493.00 |
| 100+ | ₹94.53 | ₹9,453.00 |
| 500+ | ₹87.81 | ₹43,905.00 |
| 1,000+ | ₹84.87 | ₹84,870.00 |
1 × ₹147.88
₹147.88
excl. GST
₹174.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HUFA76645S3ST_F085-VB
₹147.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 665pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.55nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 23mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.44 g
Overview
Applications
- Server and telecom power supplies - Switch Mode Power Supplies (SMPS) - Power Factor Correction (PFC) - Lighting - High Intensity Discharge (HID) lamps - Fluorescent lamp ballast lighting - Industrial applications
Key features
- Trench power MOSFET
- Maximum junction temperature 175 °C
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB50N10S3L-16-VB#C18795018VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 70 | ₹149.10 · 70 in stock | View |
 | STH80N10F7-2-VB#C19632167VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 61 | ₹171.12 · 61 in stock | View |
 | FDB120N10-VB#C20755493VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹141.59 · 10 in stock | View |
 | NTB6410ANG-VB#C20755556VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 7 | ₹141.59 · 7 in stock | View |
 | IRF3710ZSTRPBF-VB#C22389734VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹141.59 · 6 in stock | View |
