Hynetek

HUSB305-01

3.6A TSOT-23-8L Power Distribution Switches, Load Drivers

TSOT-23-8LRoHSActive

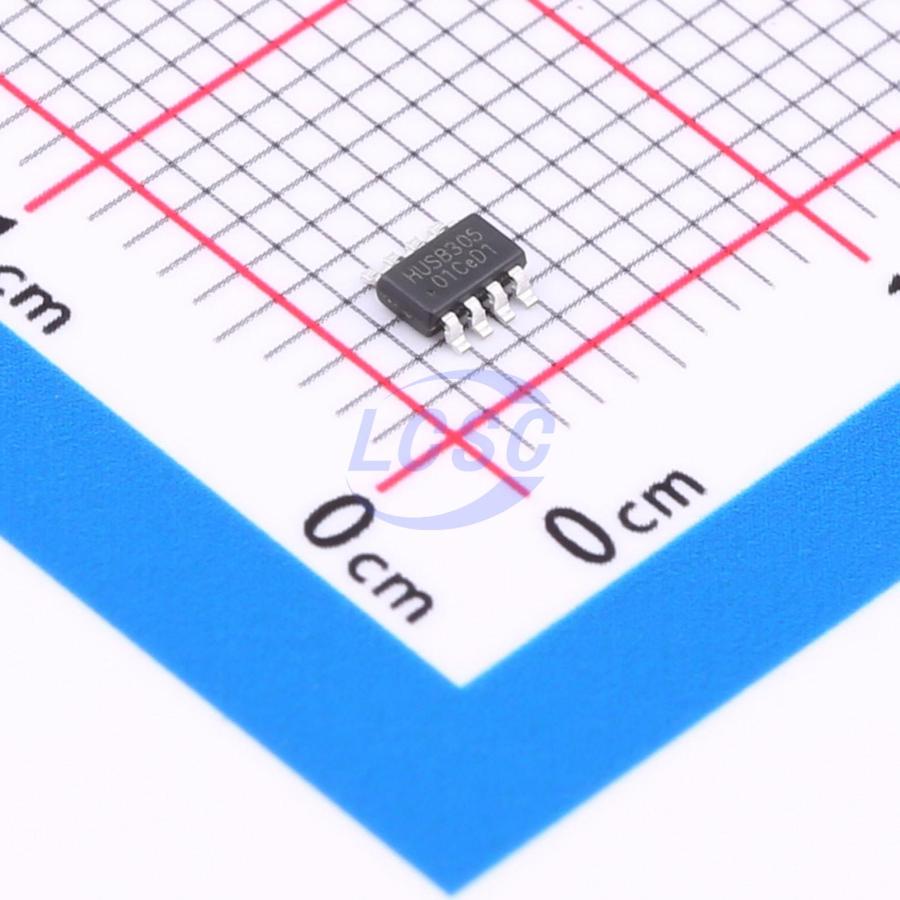

USB Type-C Source Controller with Power Switch

Manufacturer: Hynetek
Manufacturer part #: HUSB305-01
Store part #: C7471917
Package / case: TSOT-23-8L
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,066 in stock

#C7471917

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹55.20	₹55.20
10+	₹43.25	₹432.50
30+	₹38.25	₹1,147.50
100+	₹31.95	₹3,195.00
500+	₹29.12	₹14,560.00
1,000+	₹27.39	₹27,390.00

Quantity (min 1)

1 × ₹55.20

₹55.20

excl. GST

₹65.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

HUSB305-01

₹55.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Overcurrent Protection;Overvoltage protection;Under-voltage lockout;Over temperature protection;Output discharge function
Maximum Continuous Current: 3.6A
Operating Voltage: 3V~6.5V
RDS(on): 15mΩ

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.041 g

Overview

HUSB305 is a USB Type-C Source port controller, which integrates multiples essential functions for a USB Type-C source port. There is an ultra-low conduction resistance (15mΩ) N-channel MOSFET integrated. It is designed for a 5V USB Type-C source port application, which requires a high current switch. The programmable current limit provides an easy way to fine-tune the current limit through an external resistor. HUSB305 can detect its load current and change its status output to notify that there is a load applied at the current USB Type-C port. The output voltage and output current are both monitored by HUSB305 so that it can performs an OVP, OCP, OTP. HUSB305 has USB Type-C 1.5A/ 3A protocols integrated. It can automatically switch different Rp per the ISET setting. Only 150μA operation current is required for HUSB305 to save the standby power loss of whole system.
