hengjiaxing

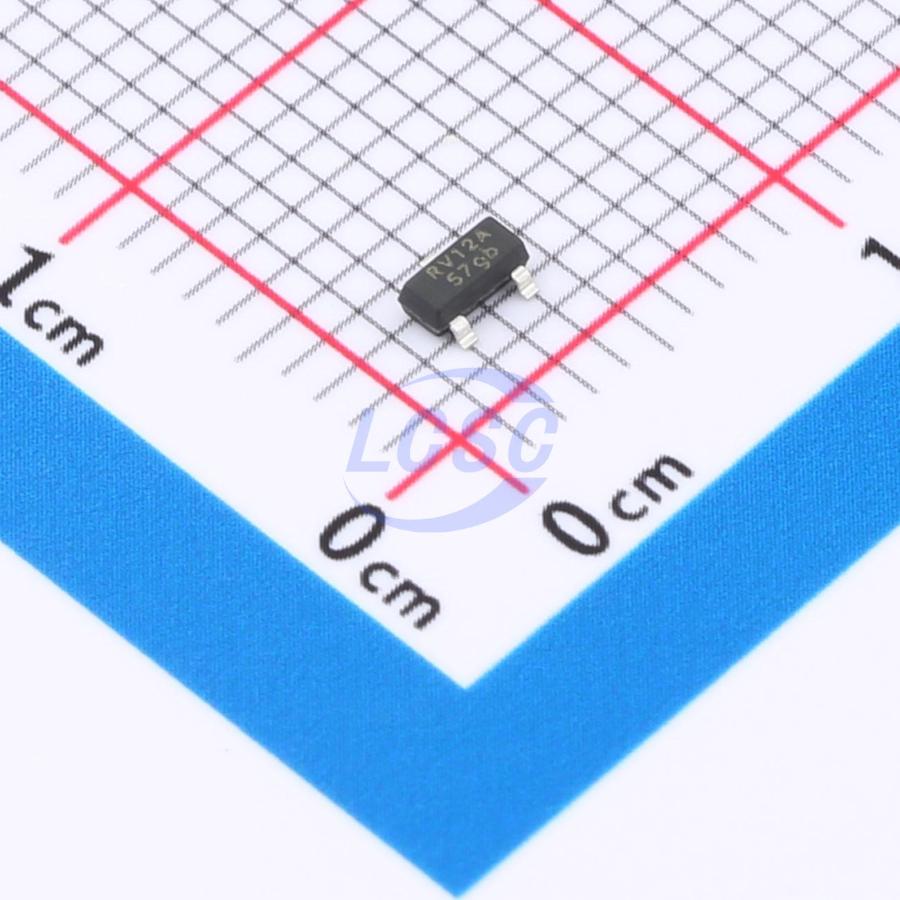

HX2312A

1 1.2A SOT-23L Power Distribution Switches, Load Drivers

SOT-23LRoHSActive

Manufacturer: hengjiaxing
Manufacturer part #: HX2312A
Store part #: C45354732
Package / case: SOT-23L
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,850 in stock

#C45354732

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹5.94	₹59.40
100+	₹4.68	₹468.00
300+	₹4.06	₹1,218.00
3,000+	₹3.60	₹10,800.00
6,000+	₹3.21	₹19,260.00
9,000+	₹3.03	₹27,270.00

Quantity (min 10, multiples of 10)

10 × ₹5.94

₹59.40

excl. GST

₹70.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX2312A

₹59.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+155℃
Features: Overcurrent Protection;Overvoltage protection;Over temperature protection;Under-voltage lockout
number of channels: 1
Maximum Continuous Current: 1.2A
Operating Voltage: 0V~7V
RDS(on): 190mΩ

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

HX2312A is an overvoltage/overcurrent protection switch IC with an integrated high-voltage power MOSFET. The IC continuously monitors the input voltage and output current. When the monitored input voltage or output current exceeds the preset threshold, the IC turns off the power MOSFET to cut off the voltage and current path, thereby protecting downstream devices. HX2312A features a fixed built-in overcurrent protection threshold. Additionally, the IC provides thermal shutdown and undervoltage lockout protection.
