HX3690A

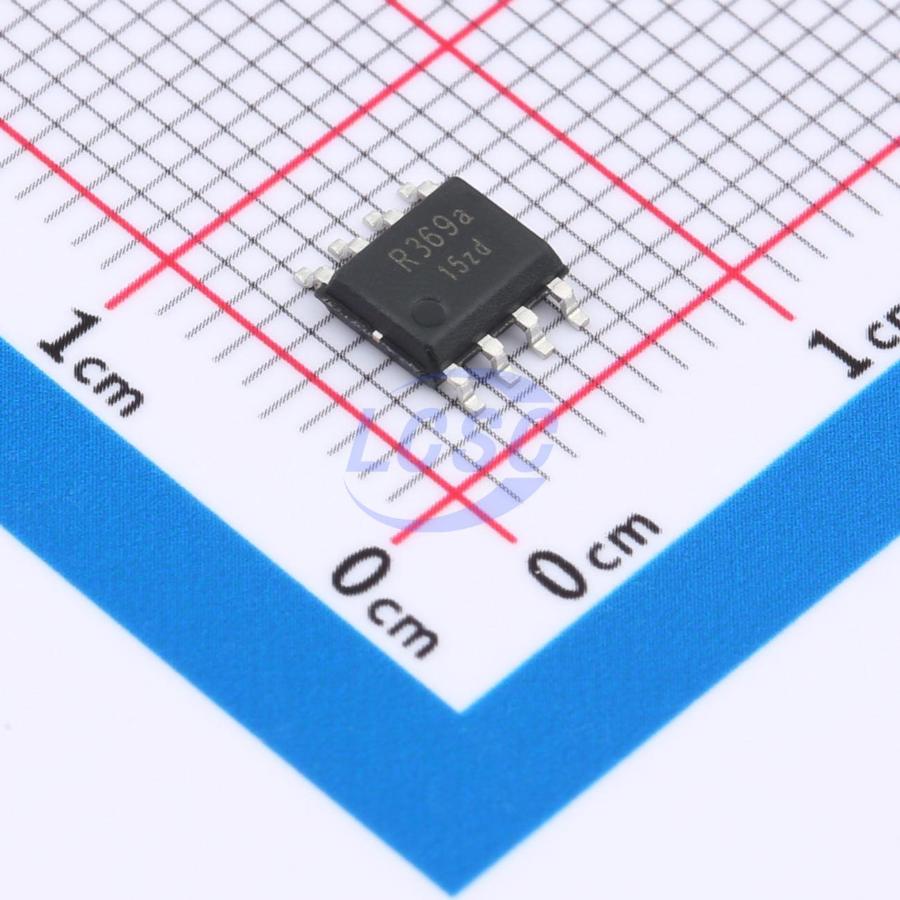

Battery Protection IC Lithium Battery ESOP-8
Built-in MOSFET Lithium Battery Protection Chip
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX3690A
- Store part #
- C45354739
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C45354739
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.75 | ₹88.75 |
| 50+ | ₹14.00 | ₹700.00 |
| 150+ | ₹12.12 | ₹1,818.00 |
| 500+ | ₹10.72 | ₹5,360.00 |
| 3,000+ | ₹9.59 | ₹28,770.00 |
| 6,000+ | ₹9.02 | ₹54,120.00 |
5 × ₹17.75
₹88.75
excl. GST
₹104.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX3690A
₹88.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+145℃
- Quiescent Current
- 7uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 0V~6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 20A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.185 g
Overview
HX3690A is a single-cell lithium battery protection IC with integrated MOSFETs. The device features ultra-low power consumption and very low on-resistance integrated MOSFETs. It provides comprehensive protection functions including charge overvoltage, charge overcurrent, discharge overvoltage, discharge overcurrent, overtemperature, and short-circuit protection, ensuring safe and efficient cell operation. The HX3690A adopts an ESOP_8 package, requiring only one resistor and one capacitor as external components, enabling an extremely simple application circuit with reliable and safe operation.
Applications
- Single-cell Li-ion rechargeable battery pack
- Single-cell LiPo rechargeable battery pack
Key features
- Integrated 8 mΩ MOSFET
- ESOP_8 package with superior thermal dissipation
- Built-in over-temperature protection
- Triple over-discharge current detection protection
- Ultra-low quiescent and sleep current: 7 uA quiescent operating current, 1.0 uA sleep current
- Lead-free product compliant with European RoHS standards
