ZHHXDZDatasheet (PDF)

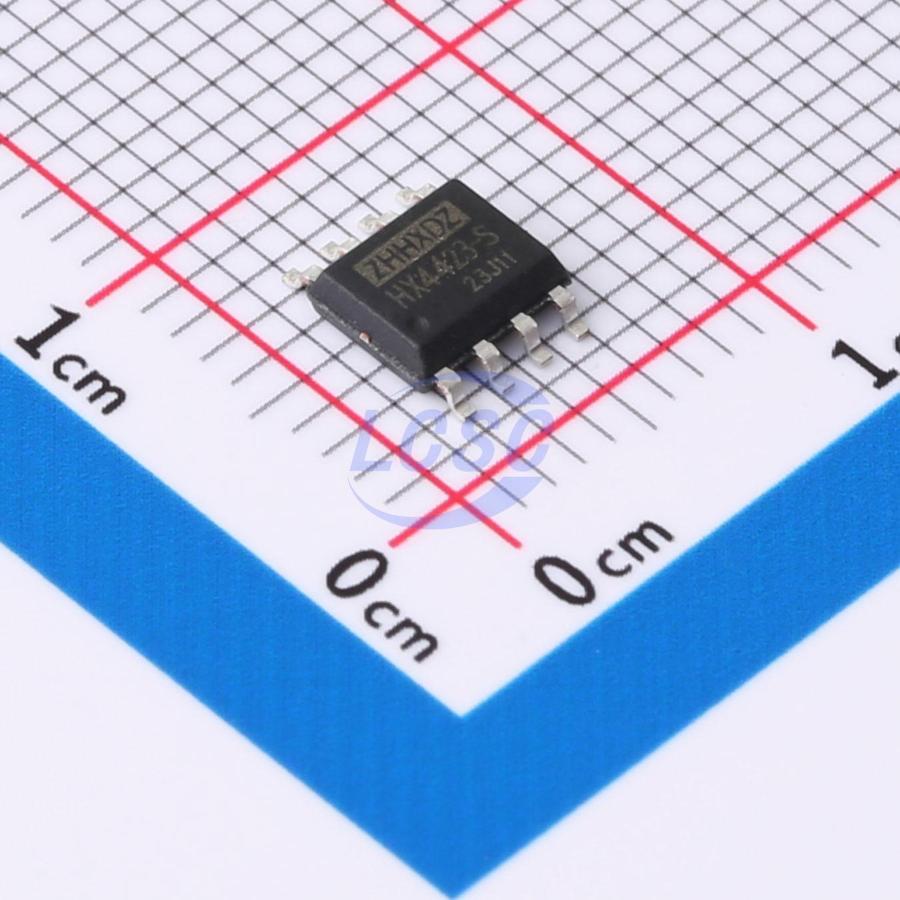

HX4423-S
4.5V~25V 3A 3A SOP-8 Gate Drivers RoHS
SOP-8ROHS CompliantActive
3A Dual High-Speed Power MOSFET Driver
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX4423-S
- Store part #
- C19186049
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,211 in stock
#C19186049
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.31 | ₹38.31 |
| 10+ | ₹33.50 | ₹335.00 |
| 30+ | ₹31.41 | ₹942.30 |
| 100+ | ₹28.68 | ₹2,868.00 |
| 500+ | ₹27.64 | ₹13,820.00 |
| 1,000+ | ₹27.02 | ₹27,020.00 |
1 × ₹38.31
₹38.31
excl. GST
₹45.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX4423-S
₹38.31 for 1 + GST
Specifications
- Input Logic Level - Low
- 700mV
- Quiescent Current
- 350uA
- Input Logic Level - High
- 1.6V
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 3A
- Rise Time
- 12ns
- Fall Time
- 12ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 3A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.497 g
Overview
Applications
- Switching power supplies
- Pulse transformer drive
- Line drivers
