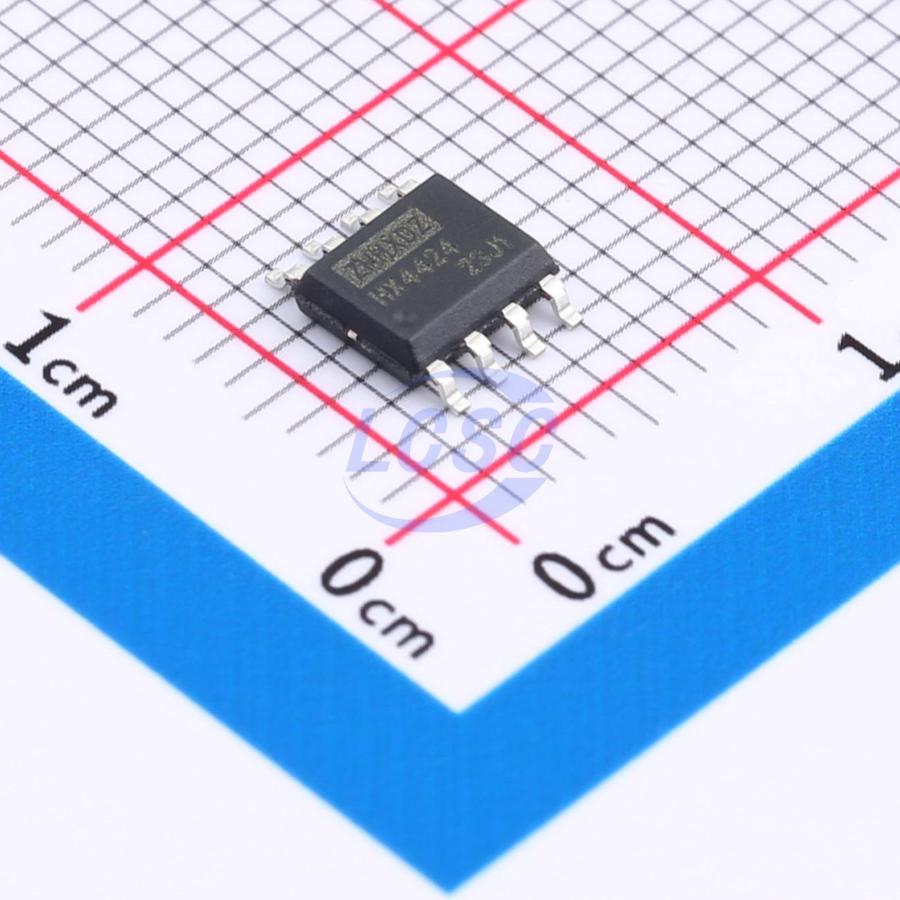

3A Dual High-Speed Power MOSFET Driver
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX4424-S
- Store part #
- C19186050
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,413 in stock
#C19186050
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.21 | ₹39.21 |
| 10+ | ₹34.29 | ₹342.90 |
| 30+ | ₹32.15 | ₹964.50 |
| 100+ | ₹29.36 | ₹2,936.00 |
| 500+ | ₹28.29 | ₹14,145.00 |
| 1,000+ | ₹27.65 | ₹27,650.00 |
1 × ₹39.21
₹39.21
excl. GST
₹46.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX4424-S
₹39.21 for 1 + GST
Specifications
- Input Logic Level - Low
- 700mV
- Input Logic Level - High
- 1.6V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 3A
- Rise Time
- 12ns
- Fall Time
- 12ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 3A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Applications
- Switching power supplies
- Pulse transformer drive
- Line drivers
Key features
- High peak output current: 3A
- Wide input supply voltage operating range: 4.5V to 18V
- High capacitive load drive capability: 1800 pF within 25 ns
- Short propagation delay: typical <40 ns
- Matched rise/fall times
- Low supply current
- Logic input '1' – 3.5 mA maximum
- Logic input '0' – 350 μA maximum
- Low output impedance: typical 3.5Ω
- Latch-up protection: withstands 1.5A reverse current
- Logic input tolerates negative swing up to 5V
- ESD protection: 4 kV
- Package types: Green SOP8, DIP8 and DFN8
