ZHHXDZ

HX7227-Q

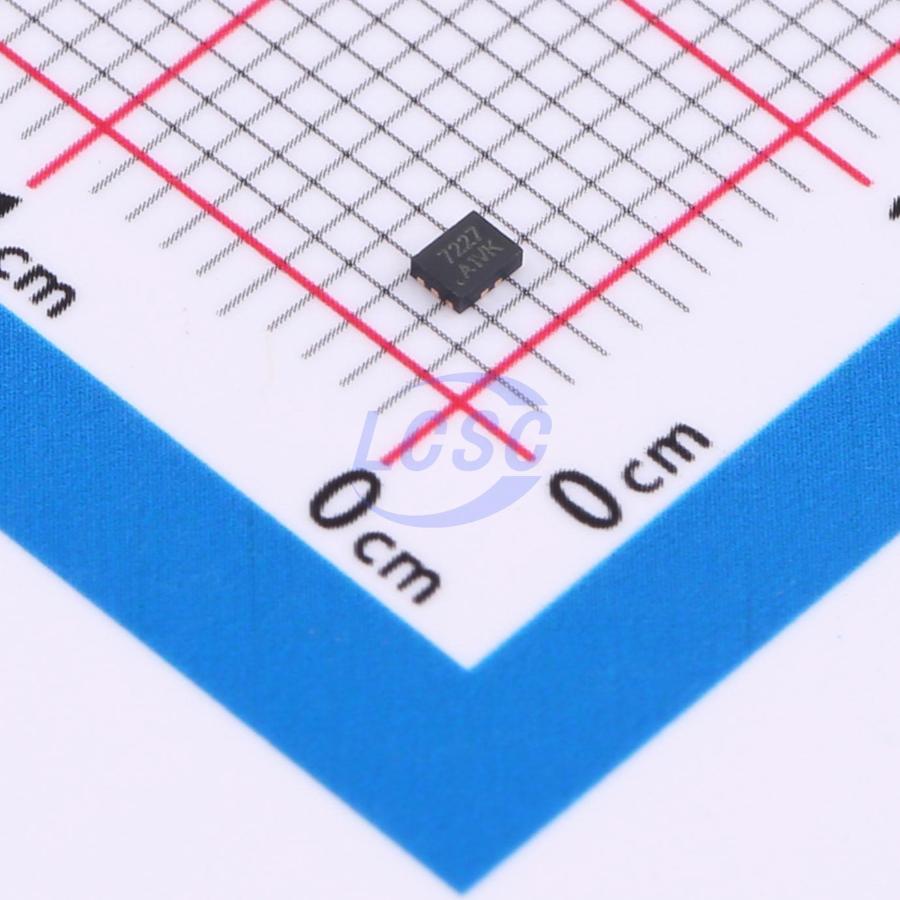

IC SWITCH 2:1 10Ω UQFN-10L(1.4x1.8)

UQFN-10L(1.4x1.8)ROHS CompliantActive

Dual 2:1 USB 2.0 Multiplexer/Demultiplexer with DC 30V Over-Voltage Protection

Manufacturer: ZHHXDZ
Manufacturer part #: HX7227-Q
Store part #: C47345561
Package / case: UQFN-10L(1.4x1.8)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,855 in stock

#C47345561

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹28.55	₹142.75
50+	₹22.54	₹1,127.00
150+	₹19.96	₹2,994.00
500+	₹16.75	₹8,375.00
2,500+	₹15.32	₹38,300.00
5,000+	₹14.46	₹72,300.00

Quantity (min 5, multiples of 5)

5 × ₹28.55

₹142.75

excl. GST

₹168.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

HX7227-Q

₹142.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Fault protection;Bidirectional analog channel;Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 10Ω
Voltage - Supply: 2.5V~5.5V
Propagation Delay: 200ps
Con: 4.8pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

HX7227-Q/HX7227-MS is a bidirectional, low-power dual-port high-speed USB 2.0 analog switch with integrated protection for USB Type-C systems. The device is configurable as a dual 2:1 or 1:2 switch, optimized for USB 2.0 DP/DM lines in USB Type-C environments. The HX7227-Q/HX7227-MS features overvoltage protection on the C0+/- pins, capable of withstanding voltages up to DC 30V, and includes an auto-shutdown circuit designed to protect system components downstream of the switch. GPIO control for SEL and EN is compatible with 1.8V logic levels. Available in UQFN 1.4x1.8-10L and MSOP10 packages, both lead-free and halogen-free, making it ideal for space-constrained mobile applications and environments.

Applications

USB Type-C or Micro-B connector applications
USB 2.0 signal routing
Mobile phones, tablets, and laptops
Digital cameras and camcorders
Portable instruments

Key features

Supply range 2.5V to 5.5V
Differential 2:1 or 1:2 switch/multiplexer
C0+/- ports support overvoltage protection up to DC 30V
No external TVS required; C0+/- ports feature IEC 64000-4-5 surge protection: ±30V
System-side clamp voltage pulse less than 9V, duration less than 200nS
Power-off protection when VDD = 0V
Typical on-resistance RON of 10Ω
Insertion loss: -1dB@200MHz, -2dB@650MHz, -3dB@1GHz
On-capacitance CON of 4.8 pF
Compatible with 1.8V logic input
Standard operating temperature range -40°C to 85°C
