HYCONDatasheet (PDF)

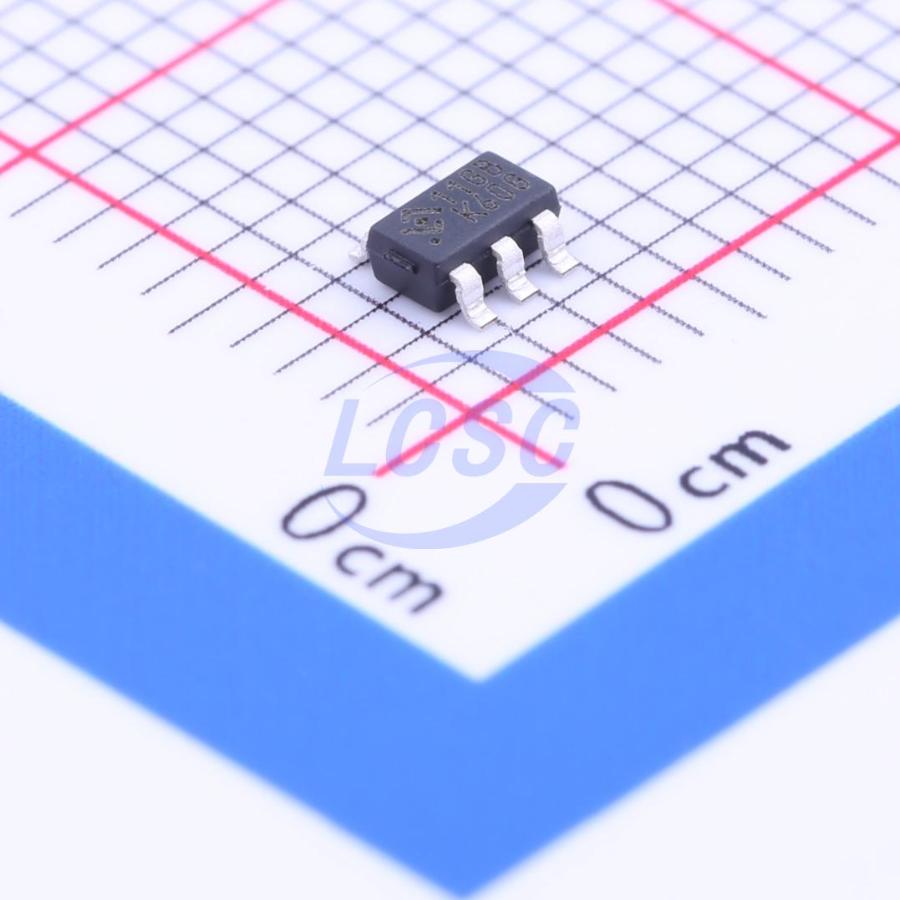

HY2111-GB
Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6RoHSActive
Single-cell lithium-ion/lithium-polymer battery protection IC
- Manufacturer
- HYCON
- Manufacturer part #
- HY2111-GB
- Store part #
- C82747
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,615 in stock
#C82747
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.81 | ₹64.05 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹8.75 | ₹1,312.50 |
| 500+ | ₹7.73 | ₹3,865.00 |
| 3,000+ | ₹6.91 | ₹20,730.00 |
| 6,000+ | ₹6.51 | ₹39,060.00 |
5 × ₹12.81
₹64.05
excl. GST
₹75.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HY2111-GB
₹64.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
HY2111 series IC, with built-in high-precision voltage detection circuit and delay circuit, is a protection IC for single-cell lithium-ion/lithium-polymer rechargeable batteries. Provides protection against overcharge, overdischarge, and overcurrent for single-cell lithium-ion/lithium-polymer rechargeable batteries.
Applications
- Single-cell Li-ion rechargeable battery pack
- Single-cell LiPo rechargeable battery pack
Key features
- High-precision voltage detection circuit
- Overcharge detection voltage: 4.200~4.400V, accuracy ±25mV
- Overcharge release voltage: 3.900~4.400V, accuracy ±50mV
- Over-discharge detection voltage: 2.30~3.00V, accuracy ±80mV
- Over-discharge release voltage: 2.30~3.40V, accuracy ±80mV
- Discharge overcurrent detection voltage: (selectable)
- Charge overcurrent detection voltage: -100mV (fixed), accuracy ±40mV
- Load short-circuit detection voltage: 0.85V (fixed), accuracy ±300mV
- All delay times set by internal circuit (no external capacitor required)
- Overcharge detection delay time: typical 100ms
- Over-discharge detection delay time: typical 25ms
- Discharge overcurrent detection delay time: typical 10ms
- Charge overcurrent detection delay time: typical 12ms
- Load short-circuit detection delay time: typical 500μs
- Sleep function: "Enabled" or "Disabled" selectable (see product catalog)
- Over-discharge auto-recovery function: "Enabled" or "Disabled" selectable (see product catalog)
- Low current consumption (models with sleep function)
- Operating mode: typical 3.0μA, maximum 6.0μA (VDD = 3.9V)
- Sleep mode: maximum 0.1μA (VDD = 2.0V)
- Charger connection terminals with high voltage withstand design (CS and OC terminals, absolute maximum rating 20V)
- 0V battery charging function: "Allowed" or "Prohibited" selectable (see product catalog)
- -40℃~+85℃
