HY2112-AB

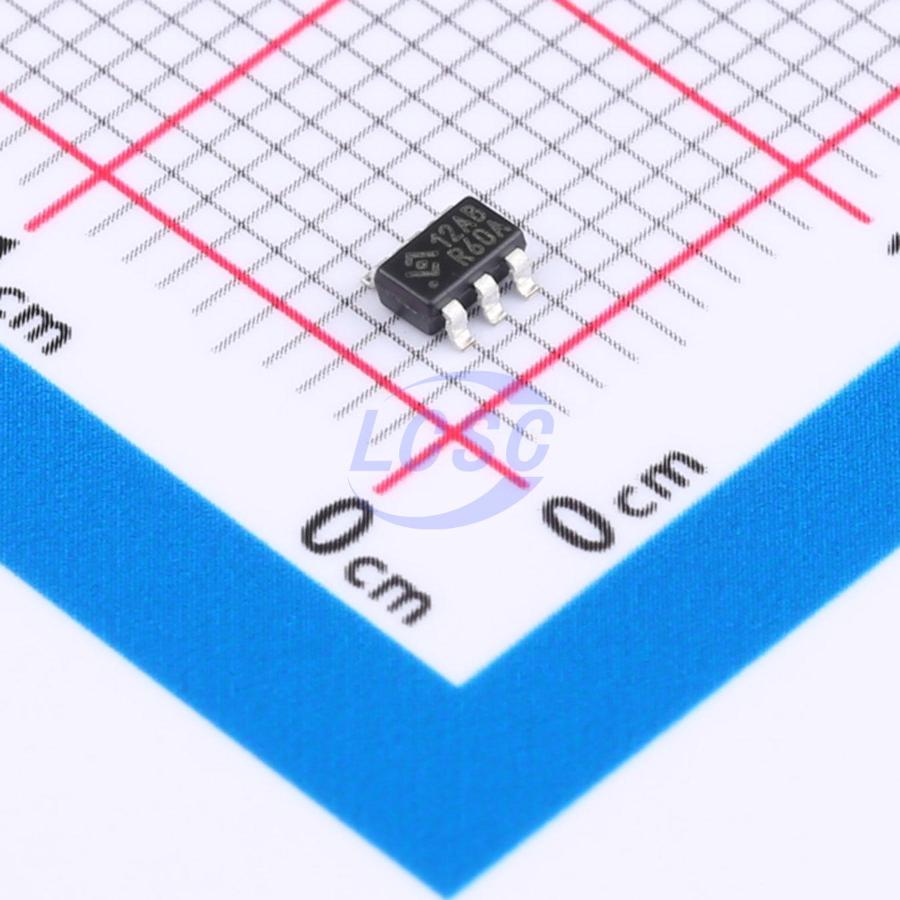

Battery Protection IC LiFePO4 Battery SOT-23-6
SOT-23-6RoHSActive
1-cell Lithium Iron Phosphate Battery Protection IC
- Manufacturer
- HYCON
- Manufacturer part #
- HY2112-AB
- Store part #
- C168763
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,275 in stock
#C168763
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.21 | ₹76.05 |
| 50+ | ₹11.88 | ₹594.00 |
| 150+ | ₹10.20 | ₹1,530.00 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 3,000+ | ₹7.95 | ₹23,850.00 |
| 6,000+ | ₹7.45 | ₹44,700.00 |
5 × ₹15.21
₹76.05
excl. GST
₹89.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HY2112-AB
₹76.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- LiFePO4 Battery
- Operating Voltage
- 1.5V~8V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
HY2112 series IC integrates a high-precision voltage detection circuit and delay circuit, designed as a protection IC for single-cell LiFePO4 rechargeable batteries. Suitable for protecting a single LiFePO4 rechargeable battery against overcharge, overdischarge, and overcurrent.
Applications
- Single-cell LiFePO₄ rechargeable battery pack
Key features
- High-precision voltage detection circuit
- Overcharge detection voltage: 3.600~4.000V, accuracy ±25mV
- Overcharge release voltage: 3.400~4.000V, accuracy ±50mV
- Over-discharge detection voltage: 1.80~2.20V, accuracy ±50mV
- Over-discharge release voltage: 1.80~2.40V, accuracy ±50mV
- Discharge overcurrent detection voltage: (selectable), accuracy ±15mV
- Charge overcurrent detection voltage: (selectable)
- Load short-circuit detection voltage: 0.85V (fixed), accuracy ±300mV
- All delay times set by internal circuit (no external capacitor required)
- Low quiescent current
- Normal mode: typical 3.0μA, maximum 6.0μA (VDD=3.2V)
- Sleep mode: maximum 0.1μA
- High voltage-rated terminal design (CS and OC terminals, absolute maximum rating 20V)
- 0V battery charging function: selectable "enable" or "disable"
- Wide operating temperature range: -40°C~+85°C
- Compact package: SOT-23-6
- Halogen-free, RoHS-compliant product
