HYCONDatasheet (PDF)

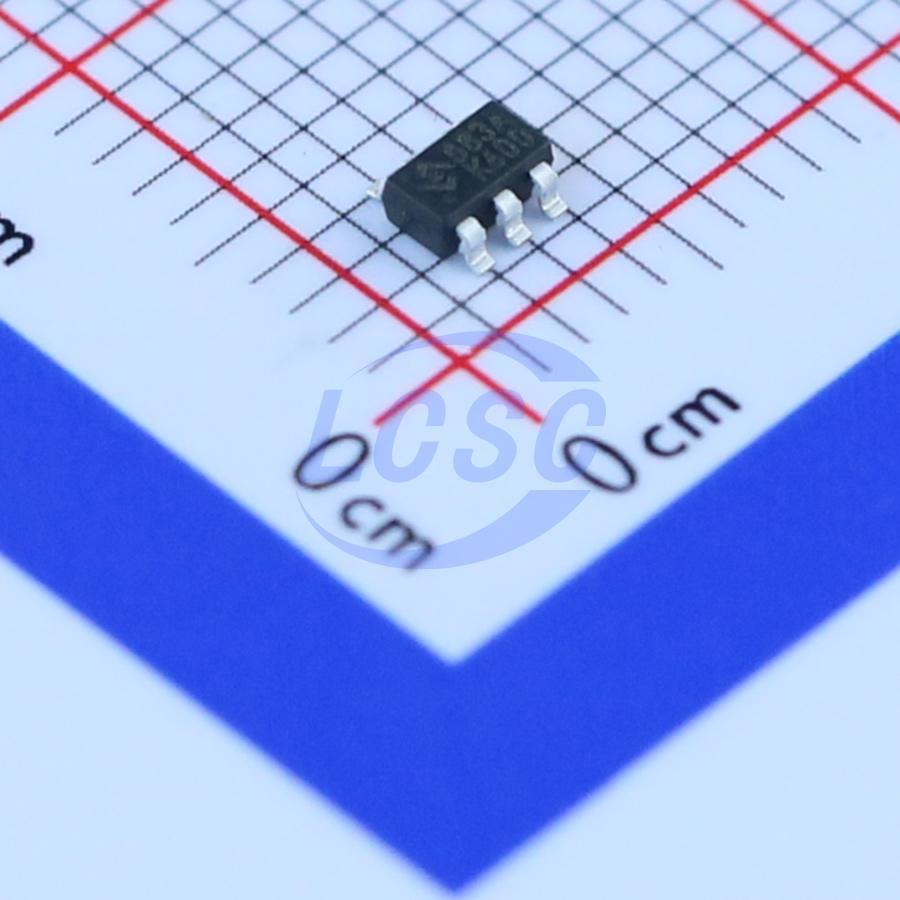

HY2213-BB3A
Lithium Battery SOT-23-6 Battery Management
SOT-23-6RoHSActive
1 Cell Li-ion/Polymer Battery Charge Balance IC
- Manufacturer
- HYCON
- Manufacturer part #
- HY2213-BB3A
- Store part #
- C113632
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,920 in stock
#C113632
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.42 | ₹87.10 |
| 50+ | ₹14.14 | ₹707.00 |
| 150+ | ₹12.49 | ₹1,873.50 |
| 500+ | ₹11.26 | ₹5,630.00 |
| 3,000+ | ₹9.23 | ₹27,690.00 |
| 6,000+ | ₹8.75 | ₹52,500.00 |
5 × ₹17.42
₹87.10
excl. GST
₹102.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HY2213-BB3A
₹87.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V
- Features
- Cell balancing
- The Chip Type
- Balancing IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The series of HY2213 is created for multi-cell battery packs to single-cell lithium-ion battery Charge balance control, electrical level monitoring ICs and it also comprises high-accuracy voltage detection circuit and delay circuit.
Applications
- Multi-cell Li-ion rechargeable battery packs
Key features
- High Precision Voltage Detection Circuit
- Overcharge detection voltage 4.000~4.500V Precision: ±25mV
- Overcharge release voltage 3.800~4.500V Precision: ±35mV
- Standby detection voltage 2.70V Precision: ±15%
- Standby release voltage 2.70V Precision: ±15%
- Delay times are generated by an internal circuit (external capacitors are unnecessary).
- Low consumption current
- Operation mode Typ. value 2.5μA, max. value: 3.5μA (VDD=3.9V)
- Standby mode Max. value: 0.5μA (VDD=2.7V)
- Wide operation temperature range: -40°C~+85°C
- Small package: SOT-23-6
- The HY2213 series are Halogen-free, green package
