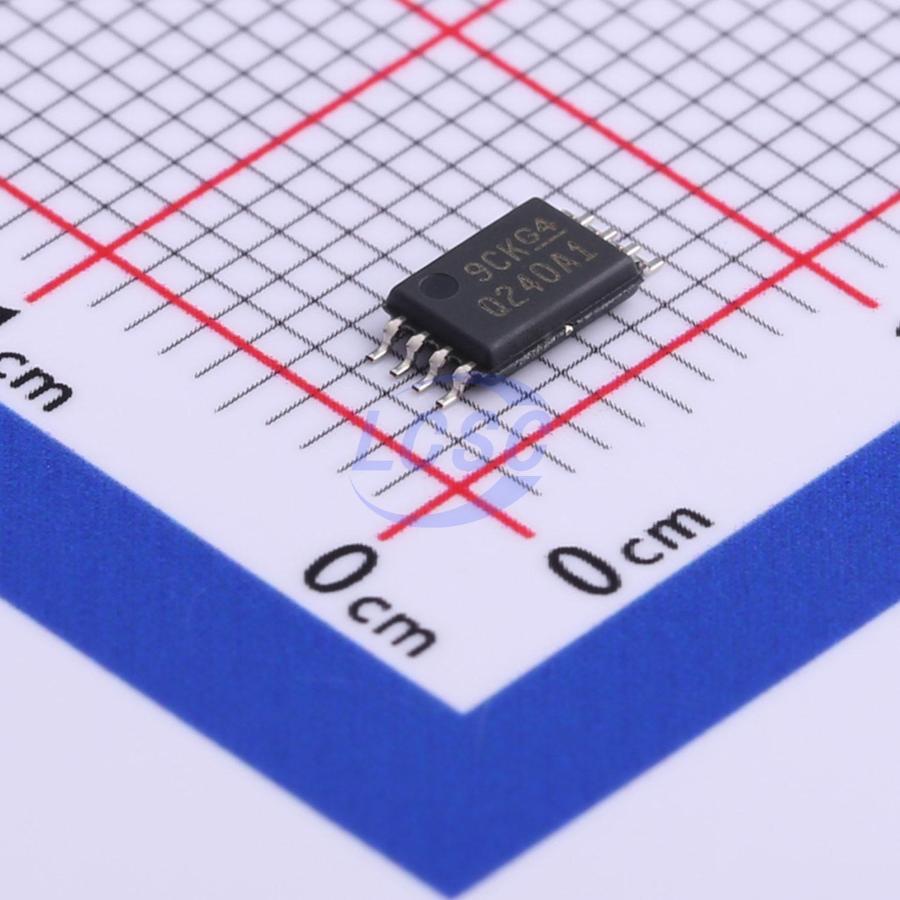

INA240A1QPWRQ1

1 5uV -4V~80V 2V/us 132dB 90uA 2.4mA 20V/V TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-8ROHS3 CompliantActive

Automotive, Wide Common-Mode Range, High- and Low-Side, Bidirectional, Zero-Drift, Current-Sense Amplifier With Enhanced PWM Rejection

Manufacturer: TI
Manufacturer part #: INA240A1QPWRQ1
Store part #: C553123
Package / case: TSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

179 in stock

#C553123

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹1,079.89	₹1,079.89
10+	₹1,019.44	₹10,194.40
30+	₹983.57	₹29,507.10
100+	₹947.48	₹94,748.00
500+	₹930.74	₹4,65,370.00
1,000+	₹923.14	₹9,23,140.00

Quantity (min 1)

1 × ₹1,079.89

₹1,079.89

excl. GST

₹1,274.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

INA240A1QPWRQ1

₹1,079.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 5uV
Vcm - Common Mode Voltage: -4V~80V
Slew Rate: 2V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 132dB
Ib - Input Bias Current: 90uA
Input Offset Voltage Drift(Vos TC): 250nV/℃
-3dB Bandwidth: 400kHz
Quiescent Current: 2.4mA
Gain: 20V/V
Features: Bidirectional detection;Zero drift / auto-zero;Analog output interface;Programmable output reference level
Input Voltage Noise Density: 40pV/√Hz@1kHz
Differential Voltage: ±80V
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.069 g

Overview

The INA240-Q1 device is an automotive-qualified, voltage-output, current-sense amplifier with enhanced PWM rejection that can sense drops across shunt resistors over a wide common-mode voltage range from -4 V to 80 V, independent of the supply voltage. The negative common-mode voltage allows the device to operate below ground, accommodating the flyback period of typical solenoid applications. Enhanced PWM rejection provides high levels of suppression for large common-mode transients (ΔV/Δt) in systems that use pulse width modulation (PWM) signals (such as motor drives and solenoid control systems). This feature allows for accurate current measurements without large transients and associated recovery ripple on the output voltage. This device operates from a single 2.7-V to 5.5-V power supply, drawing a maximum of 2.4 mA of supply current. Four fixed gains are available: 20 V/V, 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full-scale. Grade 1 versions are specified over the extended operating temperature range (-40°C to +125°C) and are offered in an 8-pin TSSOP and 8-pin SOIC packages. Grade 0 versions are specified over the extended operating temperature range (-40°C to +150°C) and are offered in an 8-pin SOIC package.

Applications

Electronic Power Steering
Stability and Traction Control
Motor and Actuator Control
Solenoid and Valve Control

Key features

AEC-Q100 Qualified for Automotive Applications
Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
Temperature Grade 0: -40°C to +150°C Ambient Operating Temperature Range
HBM ESD Classification Level H2
CDM ESD Classification Level C5
Functional Safety-Capable Documentation available to aid functional safety system design
Enhanced PWM Rejection
Excellent CMRR: 132-dB DC CMRR, 93-dB AC CMRR at 50 kHz
Wide Common-Mode Range: -4 V to 80 V
Accuracy: Gain Error: 0.20% (Maximum) With 2.5 ppm/°C (Maximum Drift)
Offset Voltage: ±25 μV (Maximum) With 250 nV/°C (Maximum Drift)
Available Gains:
INA240A1-Q1: 20 V/V
INA240A2-Q1: 50 V/V
INA240A3-Q1: 100 V/V
INA240A4-Q1: 200 V/V
